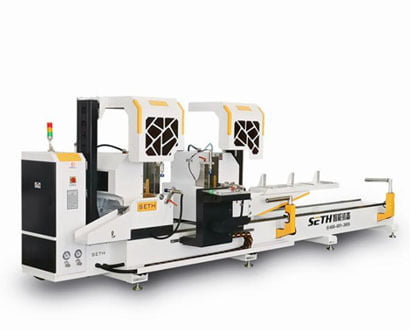

CNC double head aluminum profile cutting machine LJZ2-CNC-550*4300
₹1,400,000.00 ₹1,750,000.00
Available on Request
TECHNICAL SPECIFICATIONS:
- Power : 380V 50HZ
- Saw head motor : 2�3KW/ 2840r/min
- Working pressure : 0.6 - 0.8mpa
- cutting length : 290-4300mm
- Saw blade Dia. : 550x30x120T
- Cutting angle Deg. : 90,45
- Air consumption : 60L/min
- cutting width : Max 175mm
- Cutting height : Max.280mm
- Maximum cutting slope : 45Deg.175�245mm / 90Deg.175�280mm
- Feed speed : stepless speed regulation 0-3m/min
- Saw blade specifications : 550 � 30 � 4.4� Z120
- Dimensions : 5800x1800x1600mm
- Weight : 2000 kg
- Repeat constant length accuracy : Less than or equals to 0.05mm
- Profile cutting Angle tolerance +/- : 3
- Cutting plane flatness : Less Than or Equals to 0.1m
- Roughness of cutting surface : Ra12.5?m
