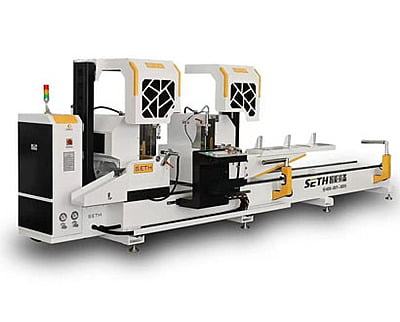

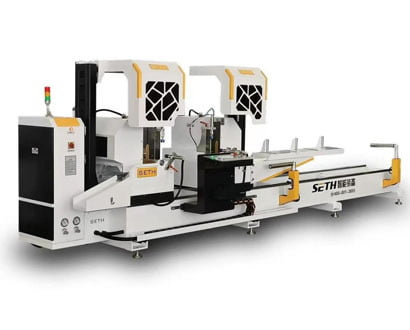

CNC Double Head Cutting Machine LJZ2-CNC-500*4300Z
₹1,250,000.00 ₹1,562,500.00
Available on Request
TECHNICAL SPECIFICATIONS:
- Power source: 380V 50HZ
- Saw head motor: 2� 3KW/ 2840r/min
- Working pressure: 0.5 to 0.8MPa
- Gas consumption: 60L/min
- Saw length: Max4300mm min 420mm (8200-300)
- Sawing width: max 140mm
- Maximum cutting incline: 45?140�220mm 90?140�300mm
- Sawing Angle: 90?, 45?
- Feed speed: stepless speed regulation 0-3m/min
- Saw blade specification : �500 � �30 � 4.4� Z120
- Overall size: 5800� 1800� 1500 mm
- Weight: 1650kg
- Repeatable length accuracy: 0.02mm
- Profile cutting Angle allowance: +- 3 '
- Cutting surface flatness: 0.02m
- Cutting surface roughness: Ra12.5?m
