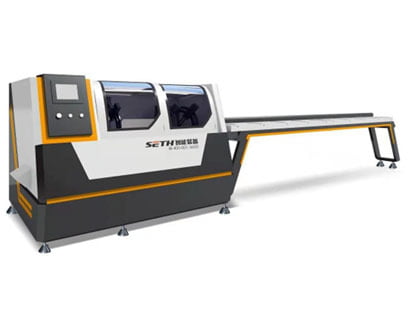

CNC Corner Connector Cutting Saw for aluminium profile
₹1,125,000.00 ₹1,406,250.00
Available on Request
TECHNICAL DATA:
- Power supply : 380v 50Hz
- Motor power : 4.0kw
- Motor speed : 2800r/min
- Air pressure : 0.6 to 0.8Mpa
- Auto feeding length : 2~800mm
- Cutting width : Max.140mm
- Cutting height : Max.240mm
- Feeding speed : 0-3m/min
- Saw blade : �500x3.8x30mm Z=120
- Cutting length : manual option is not limited
- Flatness of cutting profile : 0.01mm
- Roughness of cutting profile : Ra12.5?m
- Cut Surface Squareness : 0.1mm
- Repeat constant length accuracy : 0.05mm
- Overall dimension : 5950x1770x1840mm
- weight : 750kgs
