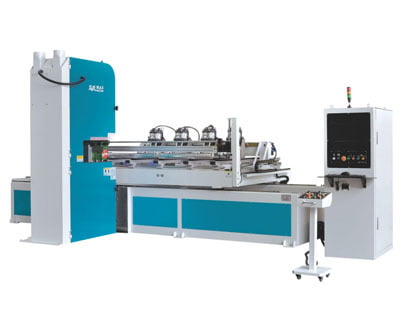

CNC Band Saw MJ359.CNC(2M)
₹4,100,000.00 ₹5,125,000.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
TECHNICAL DATA:
- Wheel Dia. : �800 x 60mm
- Min. Cutting Radius : 60mm
- Saw Blade Width : 13mm-15mm
- Saw Blade Length : 5450mm
- Blade Tilting : -90� +90�
- Saw Blade Speed : 800 rpm,50HZ
- Working capacity : 1 to 20 m/min
- Return Speed : 60 m/min
- Cutting Capacity : 2000x 1250 x180mm
- Saw Balde Drive Motor : 5.5kw(7.5HP) with Brake
- Clamping system : 4 unit (8 collets)
- Servo Drive : JAPAN YASKAWA
- Driving Guide-rail : Taiwan HIWIN/PMI
- Control System : HIGERMAN (Industrial Computer)
- C Axis.Reducer : TAIWANESE
