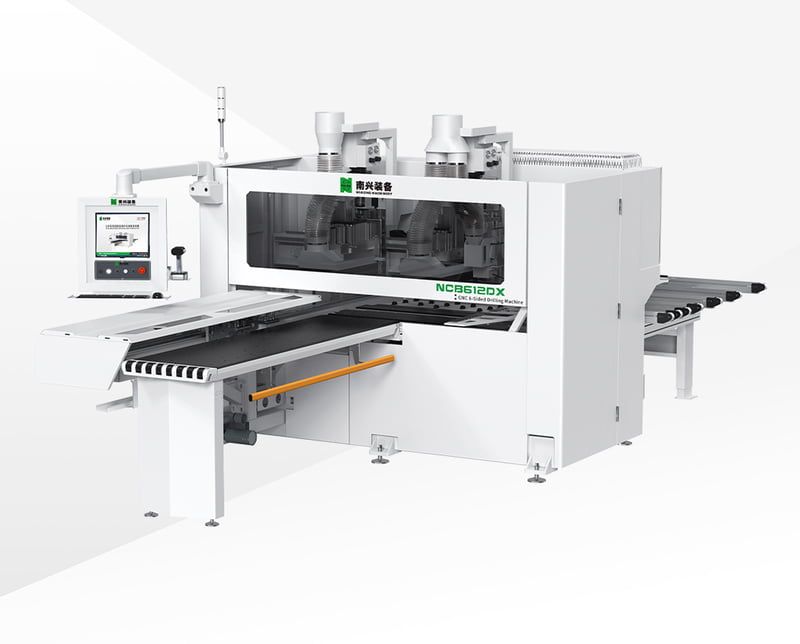

CNC 6-Sided Drilling Machine NCB612DX (3000x1200) 21.93kw
₹5,700,000.00 ₹7,125,000.00
Available on Request
Highlights
High technology compact device making possible to drill holes on 6 aspects, groove pinnacle and bottom, course shapes in a single technique with out essential of turning panel. Continuous running for various batch sizes and styles to fit complex manufacturing. High accuracy and processing powerful, essentially no lawsuits.
Long guiding rail with dual clampers. Cleaning tool in between to remove possible chips and dust on workpiece surface for tightly grasping. Special layout on bottom, clampers will collapse to ensure workpiece and the unloading desk are at identical level to prevent feasible small scratch.
Two dull blocks and one three.5kw principal spindle on top processing unit; One boring block and one 3.5kw most important spindle on backside processing unit; Well arranged drills format makes it feasible to do reflect processing on the equal time.
The accurate motion of each axis is ensured by the high satisfactory servo automobiles. Fast and precise. Max touring speed: X/U/Y/Z:one hundred thirty five/135/seventy five/30m/min
TECHNICAL SPECIFICATIONS:
- Total power :21.93 KW
- Machine size :6150 * 2806 * 2325 mm
- Power supply :380V/50Hz
- Air supply :0.6-0.7MPa
- Total weight :3750Kg
- Control system Brand :SYNTEC
- Panel Length :250-3000mm
- Panel Width :30-1200mm
- Panel Thickness :10-60mm
- Working Range X axis : 3000mm
- Working Range Y axis : 1200
- Working Range Z axis : 70mm
- Max. traveling speed (X /U?axis :135m/min
- Max. traveling speed Y axis :75m/min
- Max. traveling speed Z axis :30m/min
- Working table Material :HPL+ steel
- Working table Table size :1350 X 688
- Working table height :960mm
- Transmission mode X axis :Rack and pinion
- Transmission mode Y axis :Rack and pinion
- Transmission mode Z axis :Ball screw rod
- Servo motor X axis :2*0.75kw
- Servo motor Y axis :3*0.85kw
- Servo motor Z axis :3*0.85kw
- Boring blocks Boring block qty :Top 2; Bottom 1
- Boring blocks Vert. drills qty (top) :18*2
- Boring blocks Horiz. drills qty (top) :X: 6x2 + Y: 4x2
- Boring blocks Vert. drills qty (Bottom) :9
- Boring blocks Max drill diameter :35mm
- Boring blocks Drill spacing :32mm
- Boring blocks Rotation speed :4000rpm
- Boring blocks Shank diameter :10mm
- Main spindle qty :ER32
- Main spindle power :3.5kwx2 max.18000rpm
- Dust collector qty :2
- Dust collector diameter :Top 200mm*1
- Dust collector :Lower 125mm*1
- Dust collector speed greater than or equal to :28m/min
