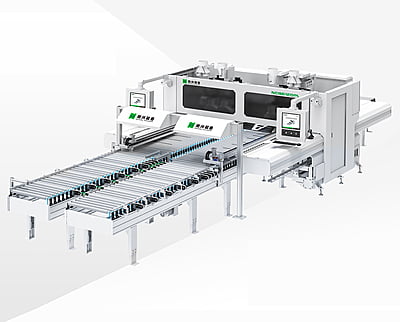

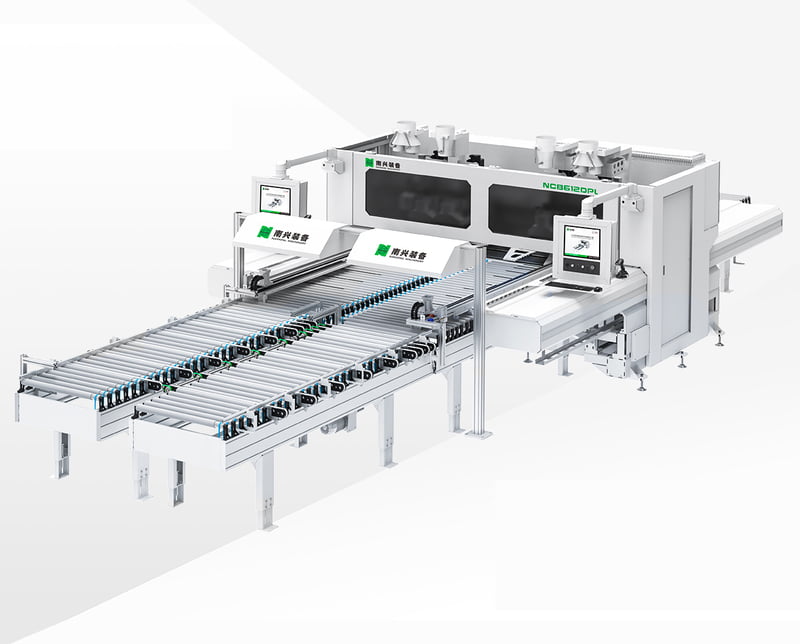

CNC 6-Sided drilling machine with double work station NCB612DPL
₹9,675,000.00
Available on Request
Nanxing CNC 6-head drilling machine NCB612. This powerful saw is designed for accuracy and efficiency. The highlights here are:
- High-tech compact design: The NCB612DX can drill holes on 6 sides, including top and bottom grooves, all in one action without having to rotate the panel.
- Continuous operation: Suitable for a variety of batch sizes and complex manufacturing processes.
- High Accuracy: Users report fewer complaints due to its ability to handle more accurately.
- Dual clampers and long guide rails: Fast processing of various parts is ensured.
- Automatic workflow: Simplifies product management.
- Automatic panel size detection: Reduces human error.
- Boring blocks and main spindle: Two boring blocks and one 3.5 kW main spindle are installed in the upper processing unit, and one boring block and one 3.5 kW main spindle are installed in the lower processing unit
FEATURES:
Six-sided drilling, front and back side grooving, double-station simultaneous processing
- Double roller worktable
- Board inspection device
- Board support device
- Double gripper rail
- Positioning cylinder
- Board pre-positioning device
- Automatic side leaning device for left and right work stations
- X/Y axis transmission system
- Servo motor
- High quality drag chain
- Double rear discharge tables
- Dual workstations
- Professional operating system
- 17-inch LCD flat panel display
- Data simulation
- Processing statistics
- Automatic scanning device
- Spindle chuck Upper spindle ER25, lower spindle ER25
TECHNICAL SPECIFICATIONS:
- Panel length : 250-2800mm
- Panel width : 50-650mm
- Panel thickness : 10-50mm
- Max speed ?X/U/Y/Z : 135/135/75/30m/min
- Upper Spindle Poser : 3.5kwx2
- Lower Spindle Power : 3.5kwx2
- Max rotating speed : 18000rpm
- Upper vertical drill : 18x4
- Upper horizontal drill : X ?4x4, Y?6x4
- Lower vertical drill : 9x2
- Rotation speed : 5000rpm
- Top dust collector Dia.: 200mmx4,
- Bottom dust collector Dia. : 125mmx2
- Total power : 52.1kw
- Overall dimension : 13366x4960x2221mm
- Net weight : 8300kg
