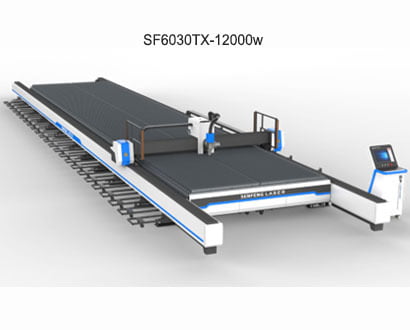

Bevel Fiber Laser Cutting Machine 12000w SF6030TX-12kW
₹31,375,000.00
Available on Request
TECHNICAL SPECIFICATIONS:
- 6000*3000mm working area
- 12000w MAX/RAYCUS source
- Single table+ open type machine
- Cypcut control system with English
- Bolts laser head
- Yaskawa-S servo motor
- Water chiller, smoke fan
- Voltage stabilizer
Technical PARAMETERS
- Work Area : 6000*3000mm
- X-axis Travel : 3000mm
- Y-axis Travel : 6000mm
- Z-axis Travel : 300mm
- Positioning accuracy : �0.1/10000mm
- Repeated positioning : �0.05mm
- A/B-axis swing angle : A-axis�50�?B-axis�45�
- Maximum speed of one single axis : A-axis 64r/min?B-axis75r/min
- Maximum speed : 80m/min
- Maximum acceleration : 0.6G
- Machine Total weight(KG) : 8000
- Table maximum load(KG) : 4200
- Outline size(mm) : 8590*4756*1887mm
- Power parameters : 3 phase 380V 50Hz
- Protection Level of Total Power Supply IP54
CONFIGURATION
- Laser source 1 set : MAX/ Raycus
- Laser head 1 set : BOCI
- Transmission 4 set : LAPPING/SENFENG
- Machine bed accessories 1 set : SENFENG
- Motor reducer 3 set : MOTOREDUCER
- Electrical and pneumatic 1 set : SCHNEIDER /SMC/AIRTAC
- Server motor and driver 4set : YASKAWA-S
- Water cooling 1 set : HANLI
- five-axis CNC laser cutting system : 1 set Cypcut
