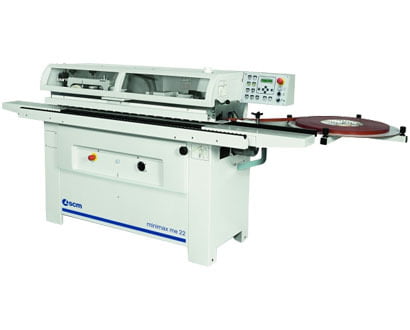

Scm Automatic Edgebander MINIMAX-ME22-ESUB
₹1,150,000.00 ₹1,437,500.00
FEATURES:
- control panel on machine infeed side
- machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units
- top thick steel pressure beam with rubber coated wheels
- exclusive feed truck
- manual adjustment of top beam with automatic positioning of the operating units according to the selected panel thickness
- numeric indicator of the selected panel thickness
- glue smokes specific exhaust outlet; centralized extraction of the other dusts
- panel support roller which can be extended on the entire length of the machine
- safety enclosure
- electrical cabinet with PLC, padlockable main switch and overload protection
- emergency push buttons
GLUE POT UNIT, EDGE LOADING AND PRESSING SYSTEM
- motor power [kW] : 0,18
- glue capacity [kg] : ~ 0,8
END CUTTING UNIT
- End cutting unit for the cut at 90???? on the leading and trailing edges of the panel.
- Possibility to exclude the unit through PLC.
SUPERPOSED TRIMMING UNIT
- motor power [kW] : 0,55
- widia cutters : Dia 75 mm Z4
- cutters rotation speed [rpm] : 12000
EDGE SCRAPING UNIT
- For the finishing of 2 mm PVC/ABS edges.
- It assures an excellent vibration free finish thanks to its high rigidity structure
BRUSHING UNIT
- With two independent motors for the cleaning and polishing of the edge.
- Tilted, vertically adjustable motors to optimize the cleaning/polishing action.
TECHNICAL SPECIFICATION
- Technical features : me 22
- worktable dimensions [mm] : 2600 x 530
- worktable height [mm] : 904
- thickness of rolled edges [mm] : 0,4 - 2
- thickness of edges in strips [mm] : up to 5
- min. - max. panel height [mm] : 12 to 50
- min. - max. panel height using edge scraping unit [mm] : 16 to 50
- min. panel length/width with rolled edges [mm] : 190/65
- min. panel length cut only on the front [mm] : 120
- feed speed [m/min] : 7
- feed motor power [kW] : 0,55
- pneumatic operating pressure [bar] : 6,5
- exhaust outlet diameter (base) [mm] : 120
- exhaust outlet diameter (glue pot) [mm] : 60
- operating temperature [????C] : 20 to 190
- Glue pot unit: :
- motor power [kW] : 0,18
- glue capacity [kg] : ~ 0,8
- Trimming unit :
- widia cutters : Dia. 75 mm Z4
- cutters rotation speed [rpm] : 9
