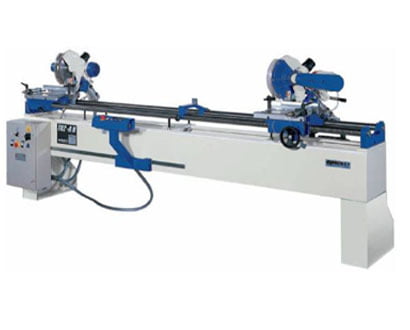

OMGA Double mitre saw TR2A-VIS(CE)

Automatic double mitre saw where the cycle is controlled by an electro pneumatic system, that allows three working cycles, selected by a switch on the control panel:

- Both heads cutting at the same time.

- Alternated cut of the saw blades to avoid collision for cutting short pieces

- Cut with one head only

The stroke of the saw units is pneumatic, manual positioning of right saw unit.

The distance between the saw blades is shown on a tape ruler

Standard Equipment

- 2 vertical clamps

- 2 horizontal clamps

- fix head on the left side

- TCT saw blades included

- Locking points at 45 RH and LH side and 90

- manual locking of intermediate angle positions

- Middle support

- Air regulator with filter and oilier

- Pressure switch

- Electrical board with overload not volt protection, main switch, motor brakes.

- Two hands push buttons for cycle execution

TECHNICAL DATA

- max. cutting length at 90? 2800 mm

- min. cutting length at 45 ? 270 mm

- min. cutting length at 90 ? 225 mm

- max. cutting width at 90 ? 145 mm

- max. cutting width at 45 ? 93 mm

- cutting height 90 mm

- saw blade diameter 300 mm

- two motors 2,2 kW

- Diameter of dust chutes 2 x 80 mm

- Total dust extraction volume 800 m3/h at 21 m/sec.
