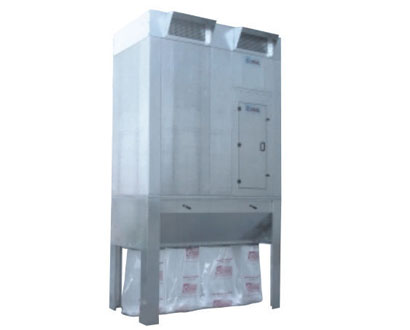

Coral MFM Centralised Dust Extraction System
₹975,000.00 ₹1,350,000.00
Warranty
12 Months GST Extra
18% Available on Request
Operating Data
Model : MFM 4/H/PT
Max air flow : 10.000 m³
Filtering surface : 62m²
Filtering media for sanding : felt B weight of 280 gr/m2
Sleeves : 36xØ220 x H2000 mm.
N° collecting bags : 4
Collecting volume : 0,98 m³
Dimensions in mm : 3210x870xH3330.
TECHNICAL SPECIFICATION :
- Model : PRM 360/2
- Air volume : 12.000 mc/h
- Installed power : 15 kW / 20 hP
- Fan speed : 2950 R.P.M.
- Voltage : 400/690/3 ph / 50 Hz
- Noise level : 72 dBA +/- 3dBA
EXCLUSIONS :
- Electrical connections and cables.
- Civil work foundation or any masonry work.
- Base frame
- Whatever not clearly specified on our offer.
