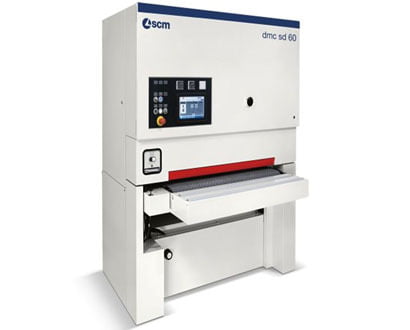

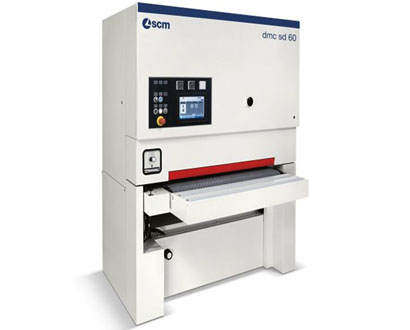

SCM Automatic Wide Belt Sander DMC-SD60(B-R027101)

- dmc sd 60 composition RCS 135

with 1st "R" group (roller) and 2nd "CS" combined group (roller/pad)

- R140/85 - 85 Sh rubber-coated calibrating roller, 140mm diameter, in 1st position

- R160/45 - 45Sh rubber-coated sanding roller, 160mm diameter, in 2nd position

- Stiff pad with manual adjustment of working height

- 11 kW (15 Hp) single main motor

- Electronic ammeter on main motor for readout of absorbed power

- Electronic readout of working thickness

- Electronic oscillating of sanding belts

- Rubber-coated pressure rollers

- Infeed anti-kickback vertically pivoted roller on 1st operating group

- 60 Sh rubber feed belt

- Infeed/outfeed workpieces support rollers with two rollers

- Feed belt speed with 2-speeds variable feed motor ( 4,5 / 9 m/min)

- Automatic device for feed belt tracking and tensioning

- Security execution

- dmc sd 60 composition RCS 135

- Volt 400 EU

- Frequency 50 Hz

B version for RCS

- on/off pneumatic selector of the roller on the 1st "R" group

- on/off pneumatic selector of the roller on the 2nd "CS" group

- "MESAR" elastic sectional pad

- on/off pneumatic selector of the pad

- "Logic 50 K" electronic programmer

- electronic positioning for working table

Infeed and outfeed support rollers for long and short workpieces

- The infeed support rollers is equipped with 5 idle rollers and the outfeed one is equipped with 1 powered roller and 4 dle rollers

Oscillating belt cleaning blower on the 1st group

- electronic tracking

- timer activated directly on working piece

- exhaust hood

- filter and pressure adjustment

Oscillating belt cleaning blower on the 2nd group

- electronic tracking

- timer activated directly on working piece

- exhaust hood

- filter and pressure adjustment

Belt feed with0.75 kW (1 hp) mechanical speed variator

-  with adjustable feed belt speed from 3,5 to 18 m/min

Sanding belt optimiser: LED indicator for panel introduction - Basic

- Device which optimises the wear of the sanding belts.

- The sequential start of LED devices positioned above

   the "hand-safety" device allow the operator the

   optimal position when introducing the work pieces.

- The sequential start-up is activated by a selector that

   enables to define the width of the work piece to be processed.

RA Helicoidal grooved steel calibrat. roller-1st group

2-speed main motor 11 kW  (15 hp)
