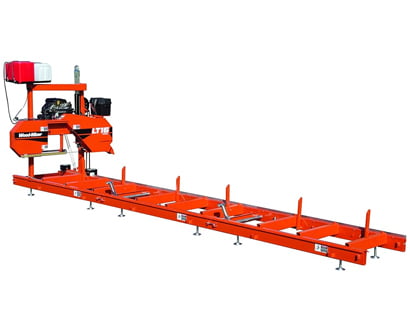

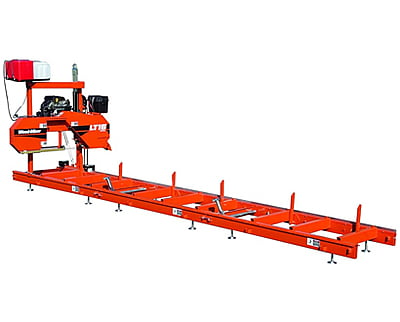

Wood-Mizer Wide Capacity Sawmill
₹2,800,000.00 ₹3,500,000.00
Warranty
12 Months GST Extra
18% Available on Request
Manual: 3 clamps, 6 side supports 1 Electric up/down 500860 Power Feed (AC) 1 CH48 Cant Hook, 48? (steel) 2 SHARPENER BMS250A Blade Sharpener 1 CBN Grinding Wheel (127 mm) 2 083559-1 Grinding Oil 5 SETTER BMT 150-1 Crank Tooth setter including 060490 gauge 1 DOUBLEHARD - BLADES (4.47 M LENGTH) BD2732IH07/34-447-F10 1.07 mm x 32 mm, Profile 7/34, Length 4.47 m ( 1 box =10 Blades) 4 Boxes 1 set of Wear and Tear Parts SPECIFICATIONS POWER 11 kW Electric CUTTING CAPACITY Max. Log Diameter 90 cm Max. Log Length 5.4 m 7.9 m (3 segments 2.7 m each, M3 Bed) Max. Width of Cut 90 cm Max. Cant width 83 cm Max. Depth of Cut 27 cm Head Up/Down Electric (Screw) Head Forward/Reverse Electric Blade Guide Arm Manual Blade Lubrication Electro Valve Blade Tension System Screw with Gauge BLADE Length 4470 mm Width 32 mm - 35 mm BLADE WHEELS Diameter 483 mm (19 inches) Type Belted Material Cast Iron Sawdust Collection Port Diameter 101.6 mm
