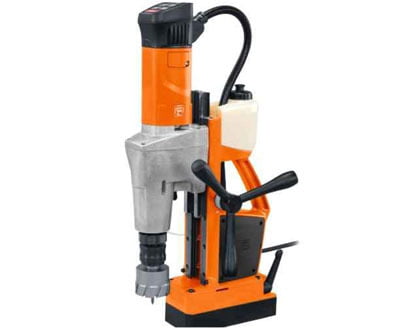

Fein Metal Core Drilling Unit KBM-65U
₹132,000.00 ₹165,000.00
Warranty
6 Months GST Extra
18% Available on Request
Powerful and very high-performance 2-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT3 tool mounting, fine adjustment and maximum functionality for flexible working in the workshop.
Product feature:
- Electronic magnetic holding force
- Magnetic holding force display
- Reversible rotation
- Variable speed control
- Memory function Speed
-controlled electronics (tacho)
INCLUDES:
1 coolant tank
1 lashing strap
1 swarf hook
1 centering pin
1 contact guard
1 drift key
1 case
- Input 1,300 W
- Output 730 W
- Load speed in speed 1 120 - 240 rpm
- Load speed in speed 2 260 - 520 rpm
- Tool Holder MK 3
- Carbide core drill bit max. Dia. 65 mm
- HSS core drill max. Dia. 45 mm
- Core drill, drilling depth max. 50(75)* mm
- Twist drill max. Dia. 25/ mm
- Tapping M 20
- Countersinking max. Dia. 50 mm
- Reaming max. Dia. 25 mm
- Core drill holder QuickIN
- Changing the core bit tool-free
- Stroke 145 mm
- Total stroke range 315 mm
- Adjustment range for drill jigs 6 mm
- Swivel range for drill jigs 7 deg.
- Magnetic holding power 14,000 N
- Magnetic foot
- dimensions 205 x 95 mm
- Cable with plug 4 m
- Weight according to EPTA 16.10 kg
