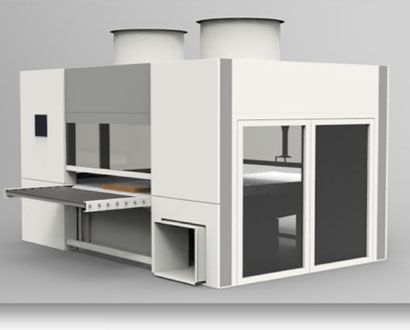

Automatic Spraying Technology ASPM1200M
₹3,429,600.00 ₹4,287,000.00
Warranty
12 Months GST Extra
18% Available on Request
Automatic spraying system is to solve problem of automatic painting in small scale industries, and it is to avoid lack of skilled scale industries.
FEATURES:
- Heavy Duty vibration free Beam structure.
- CNC technology with servo system.
- Laser scanner to scan panel dimensions.
- PU Belt conveyor with belt tracking system.
- Automatic Tension controlled Paper winder.
- Paint Kitchen ?????????Easy to clean line, gun & to change spray variant.
- Exhaust blower system with VFD speed control to control pressure.
- VFD controlled Axial fan with maximum pressure 200Pa.
- Touch screen panel
- Gun Mounting
TECHNICAL SPECIFICATIONS:
- Overall length : 3200 mm
- Overall width : 3200 mm
- Overall Height : 2200 mm
- No. of Spray Guns : 4Nos. Air Assisted Spray Guns
- With Diaphragm Pump
- Conveyor speed : 1- 4 mtr/min
- Maximum Working width : 1200 mm
- Minimum Size of panel : 200x300 mm
- Maximum product length : No limit (Can be used continuous)
- Maximum product height : 50 mm
- Total installed power : 8 kW
- Air Required Operating : 8 Bar continues supply
You're Scope
- Civil works, if any.
- Exhaust & Fresh Air Supply Unit Ducts from Blower to the outlet.
- Material Handling Arrangements i.e. Ground Track & Trolleys/ working/racking table etc.
- With grouted tiles or epoxy floor. ????? Air Lines with AFR etc.
- Platform Materials for Exhaust & Fresh Air Supply Units, Change Room, if required.
- Electrical Connections 10sq. mm 4 core multi strands Cable along with proper Earth wire up-to Control Panel of
machine
- Air Pressure line with continues air up to 8Bar,
