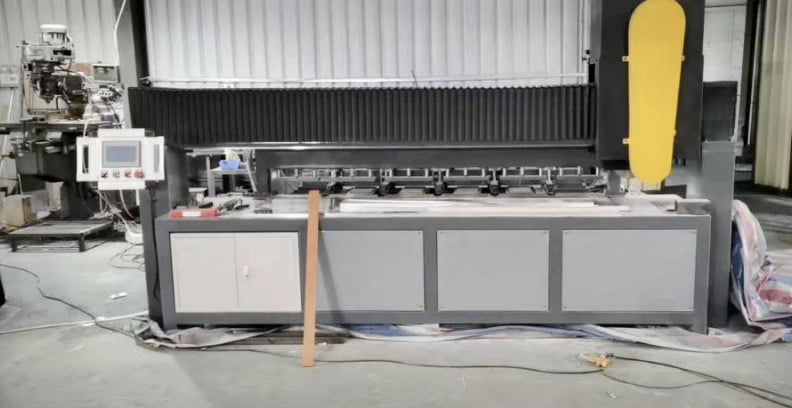

Aluminium Automatic cutting machine
₹750,000.00 ₹937,500.00
Warranty
12 Months GST Extra
18% Available on Request
Equipment Condition Use: - Power Supply : 415v 50HZ 3 phase - Working pressure of compressed air : P =0.5-0.8 MPa - The maximum amount of compressed air of the host : 1m3/h - Working Temperature: 5?C-35?C - Total installed power of equipment : 11kW - Machine overall size : 4mx2mx2m Technique Parameters: - Effectively cut honeycomb core block size width ?600mm, thickness ?150mm, length ?2400mm, cutting clip tail material ?15mm, cutting width minimum 3mm, saw blade Size 2mm*305mm, cutting workpiece accuracy ??0.1mm. Component brand see attached Parts list, all components are original and authentic. - Saw suggests 3mmX405mm and 2.0mmX305mm - Machine material thickness,motor power,Linear guide etc all need to customize so as to qualified to cutting 150mm thickness honeycomb core block
