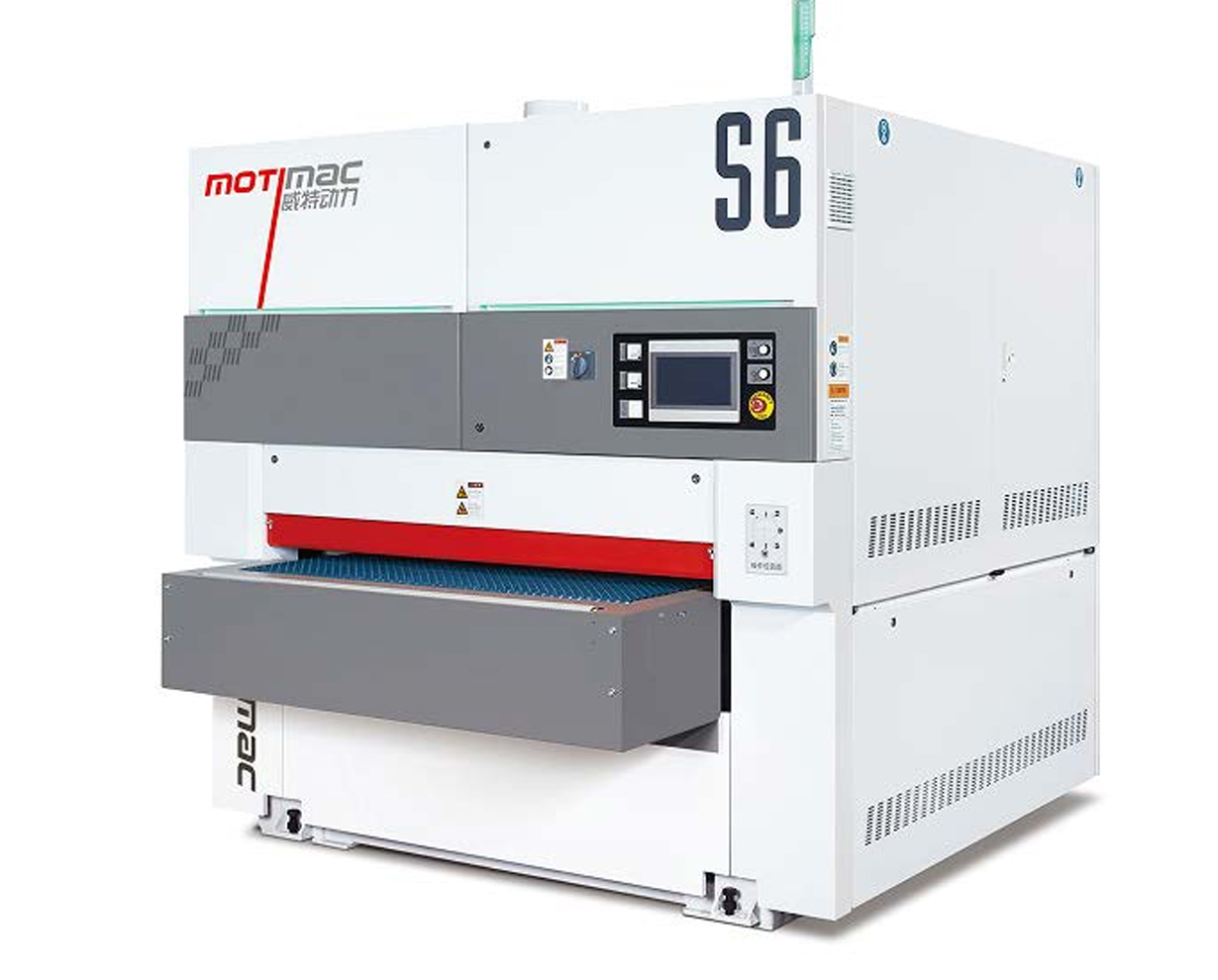

Wide Belt Sander with Planer+drum WT-KR1300

GENERAL FEATURES:

Body Frame

*The base has a strong body frame in welded steel, to guarantee the stability and durability of the entire structure.

*All laser cutting, no seam gaps. This can make sure the sanding precision.

*All the body frame steel is annealing process. Reduce the internal stress of steel and ensure the stability of the overall machine.

Base

* steel structure with electric cabinet on the machine front

*Equipped with a thick, wear-resistant stainless steel work table that guarantees precision and sturdiness during any type of machining operation.

* The work table is positioned at 900mm from the ground, thus ensure ease of panel loading and unloading.

* sanding belts introduction from the machine right side

* powered adjustment of working thickness

* main motor positioned inside the base

Electrical equipment

* automatic star-delta start of the main motor

* overload protections on the motors

* IP54 motor protection

Emergency and safety devices

* safety detection for over-thickness

* Disc brakes. This motorcycle-drived system guarantees speed and safety.

* automatic brake for rapid shutdown of the operating group

* front and rear emergency push-button

* padlockable main switch

* automatic emergency stop machine for:

- sanding belt breaking

- not-tensioned sanding belt

- lateral outplacement of sanding belt

- absence of compressed air

- overload on main motor

TECHNICAL DATA:

- Max. Working width : 1300mm

- Min. Working Length : 280mm

- Working Thickness : 10-150mm

- First unit: planer Diameter : 80mm

- Second unit: Diameter : 240mm

- First Unit: Motor : 30kw

- Second Unit: Motor : 22kw

- Conveyor belt: Motor : 4kw

- Lifting Motor : 0.55kw

- Brush roller: Motor : 1.5kw

- Total Power : 58kw

- First unit : planer

- Second unit : 80HA

- Conveyor belt: Speed : 5-24m/min

- Abrasive Belt Size : 1350*2620mm

- Air Pressure : 0.6Mpa

- Overall Dimensions : 223x×2700×2450-2600mm

- Worktable height : 900mm

- Net Weight : 4600 kgs

- Air jet cleaning for sandpaper : YES

- Table : Fixed

- Conveyor belt centered automatically : YES

- PLC control : YES

- Iron pallet with soft package : YES

- Voltage : 415v/50hz/3phase

- Production lead time : 55days
