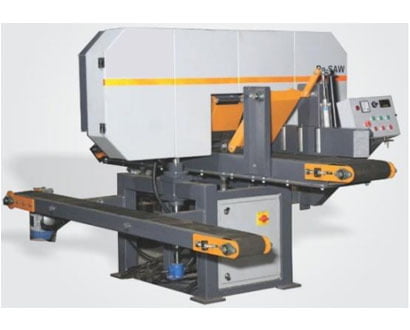

Horizontal Resaw Machine - Single Head Upside JHR28
₹1,010,000.00 ₹1,262,500.00
Warranty
12 Months GST Extra
18% Available on Request
SAW WHEEL SPECIFICATION
- Solid Steel Wheel Dia.-28", Width-50mm
- Wheel RPM: 600RPM
CONVEYOR SPECIFICATION
- Width of Conveyor: 12” Rubber Belt
- Feed Speed: 0-35 Feet per Minute
POWER CONSUMPTION
- Saw Motor Power : 15Hp X 1nos
- Conveyor Motor : 2Hp x 1nos
- Elevation Motor :0.5Hp X 1 nos.
VARIABLE DISTANCE BETWEEN BLADE & CONVEYOR
- 5mm to 150mm THROAT (Max. material remains above the blade) : 5.5"/140MM
MAX. RAW MATERIAL HEIGHT CAN BE USED
- SIZE TO CUT + 140MM
CUTTING CAPACITY
- Length: 2ft to unlimited
- Height: 5mm - 150mm
- Max. Width: 300mm
OHER FEATURES
- Hydraulic Blade Tension
- Ball Screw Elevation for accurate working
- Material Thickness Display
- Blade Lubrication: Spray mist system
- Pressure Rollers with Air Cylinder loading
SPARES & ACCESSORIES
- TCT Saw Blades: 1 Nos(extra Blade cost 8500/-+ tax )
- Machine Maintenance Toolkit
- Greasing & Oiling Kit
RETURN CONVEYOR
- Rubber Conveyor (extra for extension conveyor)
- Power Consumption: 1 Hp x 1 Nos
