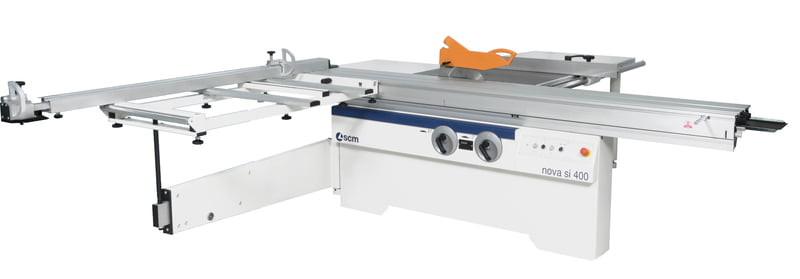

SCM Circular Saw / Panel Saw NOVA SI400 With tilting Blade NOVA-400-IT
₹950,000.00 ₹1,187,500.00
Warranty
12 Months Country of origin
Italy GST Extra
18% FEATURES
Optimizer/Sequencer App for Tablet: SCM Thundercut:
- Application to be downloaded from the App Store or Paly Store on compatible tablets (mobile devices) equipped with
iPadOS or Android operating systems.
- It can be activated using the QR code supplied with the machine.
The App allows to:

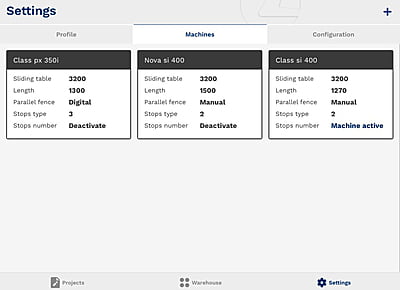

* manage your machine stock and the material and panel magazine

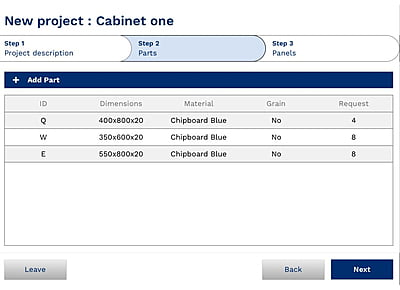

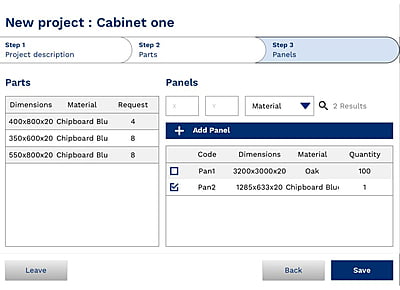

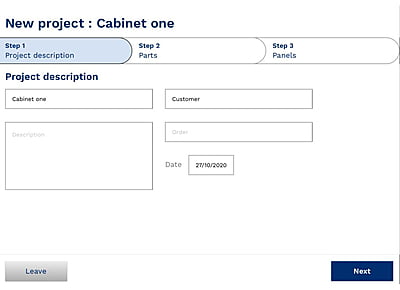

* create and modify projects, import projects from the main furniture design software
("cpout" file format), import cutting lists

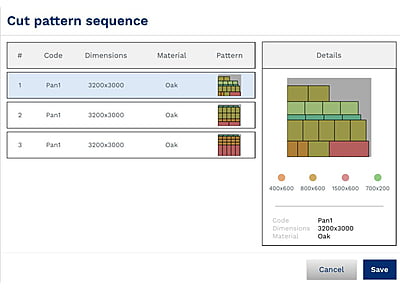

* optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App.

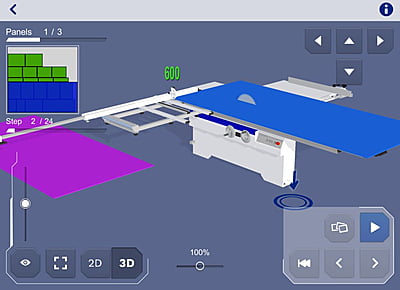

* set the machine correctly for each cut to be made, thanks to the simple and intuitive
graphics of the 3D sequencer that guides the operator at each step.
* print labels with bar code to identify the various parts, thanks to the Bluetooth connection
with compatible label printers.
- Anodized aluminium alloy carriage on hardened steel guides, which are fixed on the
carriage by means of mechanical bending system
- Sliding carriage length 3200mm
- Lifting and tilting of saw unit means of handwheels on the machine front side
and mechanical readout of saw unit tilt
- Squaring frame the fast fence positioning of angular cuttings
- Outfeed table extensions
- Manual rip fence with position reading on metric rule
- Sliding on steel bar, 40 mm diameter with micrometric adjustment
- Ripping capacity on parallel fence 1270 mm
- Eccentric clamp
TECHNICAL SPECIFICATION
- Max cutting height at 90� (mm) : 140 with blade 400
- Max cutting height at 45� (mm) : 97 with blade 400
- Blade tilt (degrees) : 45
- Blades lifting and tilt : manual
- Main blade rotating speed (rpm) : 3700
- Scoring unit rotating speed (rpm) : 8500
- Saw unit motor power (S6 -40%) kW (HP) 50 Hz : 7 (9,5)
- Scoring unit motor power (S6 -40%) kW (HP) 50 Hz : 1,3 (1,7)
- Squaring capacity: 3200 mm carriage : 3200x3200
- Cutting width on parallel fence (mm) : 1270
- Exhaust outlet diameter - at thebase (mm) : 120
- Exhaust outlet diameter- on riving knife (mm) : 60
- Basic machine net weight (kg) : 980
Motor 7kW - 50 HZ
- Direct start main motor with pushbuttons
- Independent powered scoring unit, external setting up and stops for a quick re-positioning of the blade
Safety/Protections:
- Emergency pushbutton located on the front machine side
- Overload protection
- Blade protection on riving knife (versions with electrical protections) exhaust outlet 60mm.
- Padlockable main switch
- Auxiliary low voltage circuit (110 voltage)
Choose Quantity
Specifications
Sawing Specifications
- Squaring Capacity3200 mm
- Ripping capacity1270 mm
- Max. Cutting Height140 mm
- Main Saw Unit Power7 kW
- Main Saw Rpm3700
