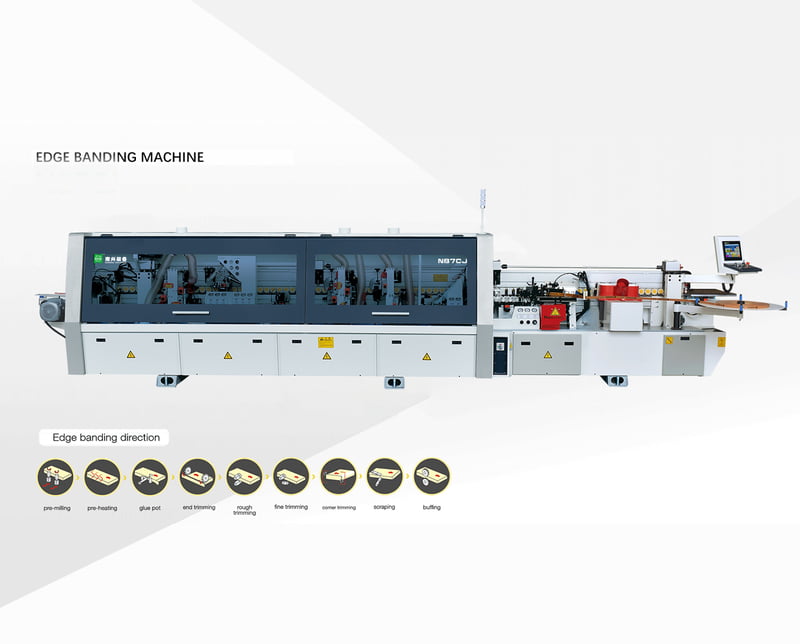

Narrow Edge Banding Machine NB7CJMN
₹4,800,000.00 ₹6,000,000.00
Available on Request
Highlights
Compact press rollers cooperate with extra assistance rollers on front and in between make it viable to do area banding paintings for min 30mm work piece in width.
Two sets of gluing, fine trimming, scraping and buffing devices make it clean and rapid to switch among darkish and mild colour glue which meet flexible edge banding requirements. Cutters of 1 set of pleasant trimming, scraping are able to circulate backwards routinely if changing to the opposite shade glue, set-up time has a tendency to 0. Low funding, massive advantages.
With additional pre-milling and corner trimming characteristic.
Heavy duty device body and most mechanical system elements are proceed by superior CNC machines for higher stability and longer provider lifestyles with out deforming ;
Most electric components are in world well-known brand.

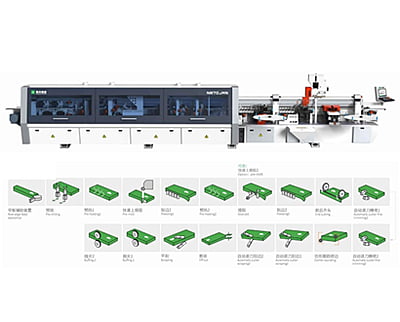

FEATURES:
- Premilling
- Assistance for Narrow Edge
- 2 Pre-heating sets
- 2 Sets Gluing Unit
- Coil Tape Feeder
- 2 Sets Pressure Roller
- Lubrication System
- End Trimming
- Fine Trimming units with 2 Pneumatic Positions
- Corner Rounding Unit
- 2 Set Scrapping Unit with 2 Pneumatic Positions
- Off Cut Device and flat scrapping unit
- 2 Sets of Buffing Unit
- Safety Device Feeding Protector & Thickness Detection
- Remote Switch & Indicator Light
- Control System 10" Touch Screen
- Energy Saving
- Production Report
- Narrow Workpiece Solution
TECHNICAL SPECIFICATIONS :
- Narrow long edge : 40�200�9mm
- Narrow short edge : 45�200�9mm
- Panel thickness (narrow edge Corner trim on) : less than or equal to 25mm
- Panel thickness : 9-60mm
- Edge tape thickness : 0.4-3mm
- Feed speed : 16/18/20m/min
- Feed speed :narrow edge : 16m/min
- Dust extraction Dia. : 125mm�5
- Total power : 30.1kw
- Overall dimension : 9800�1450�1650mm
- Net weight : 3670kg
