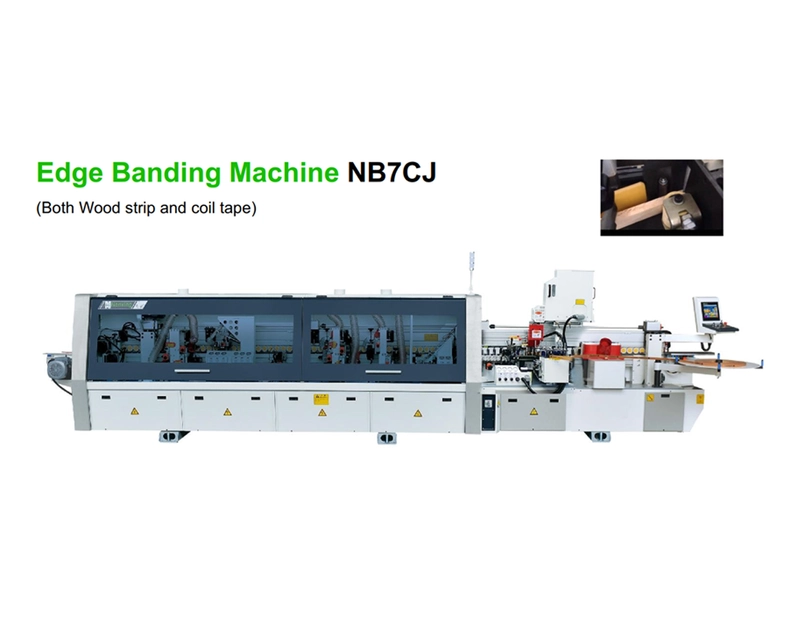

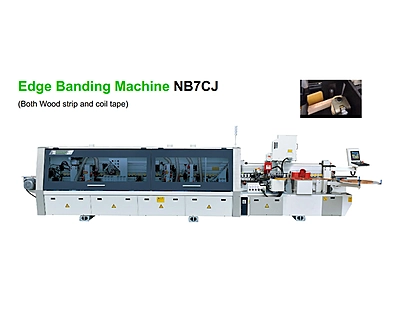

Nanxing Edge Banding Machine NB7CJ for Solid Wood Strip

₹3,525,000.00 ₹4,406,250.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request

FEATURES:

Spraying device (release+ clean agent)

Pre-milling

Pre Heating

Pre-Melter gluing system

Coil tape feeder

Strip feeding

Snipping

Pressure rollers

Lubrication oil pump

End Trimming

Rough Trimming

Fine Trimming R1.5 Cutter

Corner Trimming R1.5 Cutter

Scrapping R1.5 Cutter

Buffing

Dust Collection

Safety Devices

Feeding protector and thickness detection

Interval feeding detection system

E-Stop

Remote switch & Indicator light

Energy Saving quick start/stop in one click

10’’ touch screen Control System

TEST

TECHNICAL SPECIFICATIONS

- Mini. Panel size : 120x80mm

- Panel thickness : 10-60 mm

- Wood Strip : 8mm thickness; 50-60mm height

- Edge tape thickness : 0.4 - 3 mm

- Feeding speed : 16/20/24 m/min

- Power supply : 380 V; 50 Hz

- Air pressure required : 0.7MPa

- Operation system : 10’’ touch screen

- Dust collector Dia. x N : 125mmx5

- Total power : 22.4 Kw

- Approx. weight : 3670 kg

- Overall dimension : 9800*1450*1650 mm
