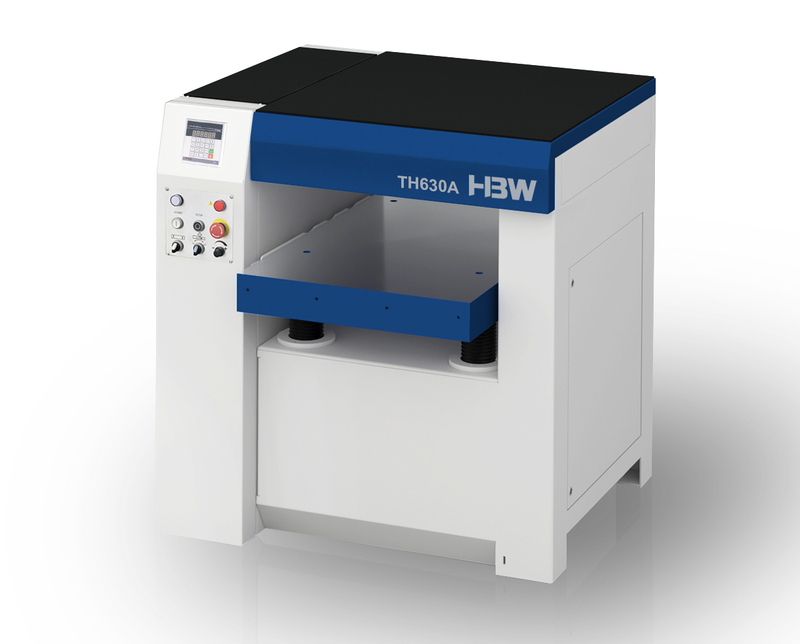

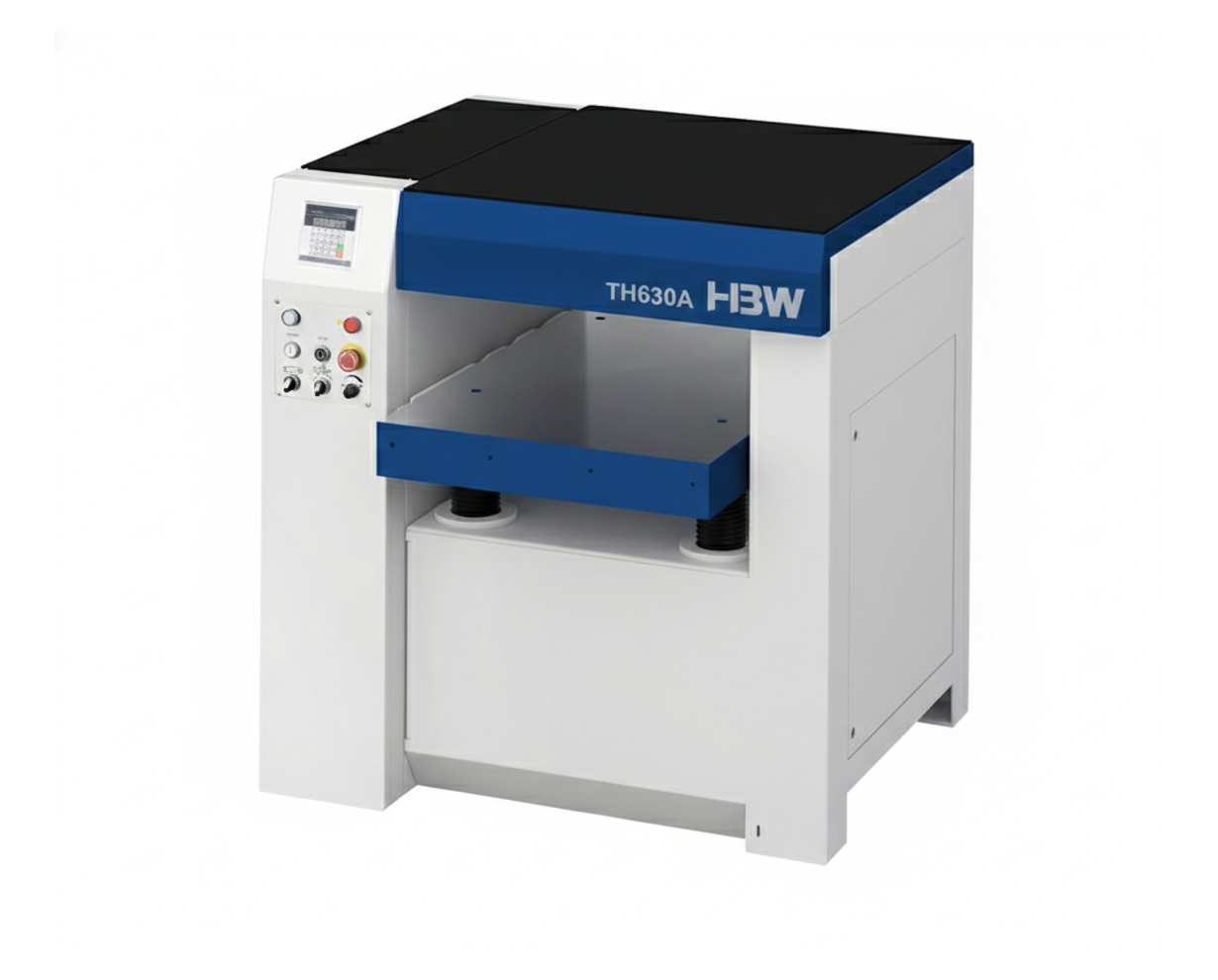

25" Industrial Planer/3*400V/50Hz/7.5kW
₹700,000.00 ₹875,000.00
Available on Request
TECHNICAL DATA
- Feed Speed : 4 - 16m/min (variable speed)
- Cutter block Speed : 5500rpm
- Cutter block dia. : 115mm
- Max. Thickness Height : 5 - 300mm
- Max. Thickness Width : 630mm
- Min. length of workpiece : 280mm
- Max. depth of cut : 8mm
- Cutterhead : 6 Slot Spiral cutterhead
- Thickness table size : 1050 x 630mm
- Extractor port dia. : 150mm
- Lift motor output : 0.25kw
- Feeding motor output : 0.55kw
- Net/gross weight : 650/716kg
- Power : 3*400V/50Hz/7.5kW
*with 6 slots spiral cutterhead
