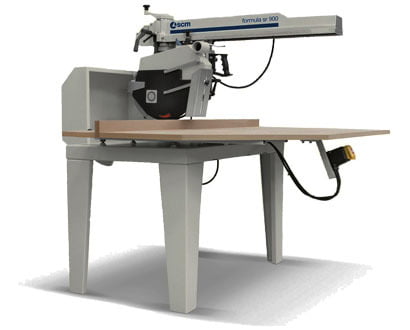

Scm Radial Arm Saw SR650 with 2 Support Roller Tables R006701

STANDARD MACHINE

- formula sr 650 / Voltage 400 EU / Frequency 50 hz

- Rollers table, 1 meter length, on the blade left side (each)

- Roller table, 1 meter length, on the blade right side (each)

- Aluminium fence on wooden table

- Manual side stop (each)

- Blade guard for blade, 400 mm diameter

- TCT blade, 400 mm diameter

STANDARD EQUIPMENTS

- Cast-iron arm, column, pedestal and carriage

- Interchangeable sliding ways

- Carriage with 8 adjustable bearings

- Column protection cover

TECHNICAL DATA

- Blade diameter [mm]: 350-400

- Blade tilting :-45 De. +45Deg.

- Max. cutting depth with blade at 90Deg./45Deg. [mm]: 120/83*

- Cross cut capacity [mm]:640 x 20

- Three-phase motor : 3kW(4hp)50Hz
