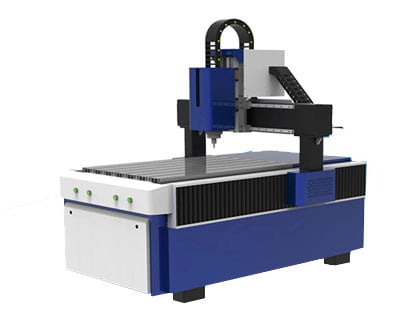

Flatbed CNC routing machines T8-1325 | 600*900*200 | 30 m/mm | Stepper Motor | 5.75 kW | T-Slot
₹475,000.00 ₹593,750.00
SKU : T8-1325(600*900*200)
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
TECHNICAL SPECIFICATIONS:
- Machine Bed : Heavy duty machine bed
- Table : Aluminum T-slot
- spindle : HQD 3.5kw water-cooled spindle, ER25, 18000 rpm
- Inverter : Fuling 3.7 kw inverter
- Tool Magazine : NA
- System : Richauto DSP A11 controller
- Motor : YAKO MS3 - Stepper motor and drive
- Reducer : Garing box 1.5M
- Rails : Taiwan HIWIN 25mm square linear guide rails
- Rack : 1.5M XINYUE helical rack, TAIWAN TBI 2510 on Z
- Screw : Taiwan 2505 TBI ball screw on Z axis
- Lubrication : Manual lubrication system
- Control Cabinet : Electric panel to be inside the machine.
- Electrical : Schneider electrical components
- Software : ALPHACAM/TYPE3/ARTCAM etc.
- Chiller : TEYU CW3000
- Random tools : 9 pcs
- Other parts : 1 set
PARAMETERS:
- Working size : 600*900*200 mm
- MAX. speed : 30m/min
- Cutting speed : 10m/min
- Total power : 5.75KW
- Power supply : AC 400V/ 3PH 0r AC220V 1PH
- Positioning accuracy : 0.02mm/300mm
- Repetitive positioning accuracy : 0.03mm
