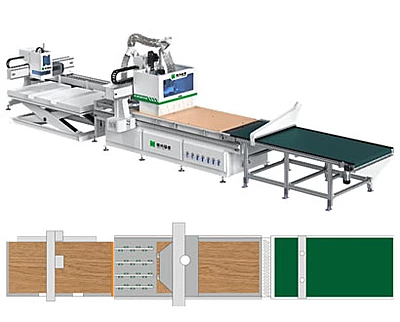

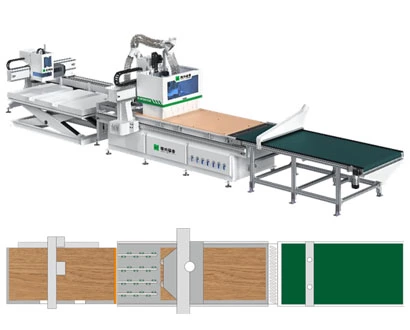

CNC Nesting Machine with AL&UL NCG28LE with 9kw Spindle w/o Drill Head

FEATURES: - 1pc Vacuum Pump - Automatic Loading - Pre-Positioning Vacuum Cup - Vacuum cup and roller bracket - Rotatable Labelling - Automatic Greasing - Side Positioning Cylinders & Positioning Cups - 9kW main Spindle - Automatic Line Tool Changer 12 Slots - Unloading Pusher - Rear Positioning Cylinders and Dust Collector - Auto Unloading - Start/Stop Button on gantry - Tank Cable Chain - Tool Setting gauge and locker - Hand Wheel and Foot Switch - Computer with Windows Dell Display USB Port & easy for remote assistance - Control System TECHNICAL SPECIFICATIONS: - Control system : SYNTEC - Working range X : X-axis: 2,800 mm - Working range Y : Z-axis: 50 mm - Working range Z : Y-axis: 1,220 mm - Working table : Size: 2,800×1,220 mm Height: 950mm - Max. traveling speed X : X-axis: 100 m/min - Max. traveling speed Y : Z-axis: 20 m/min - Max. traveling speed Z : Y-axis: 100 m/min - Main spindle Quantity : 1 - Main spindle Power : 9 kW - Main spindle Tool Holder : ISO30 - Main spindle Tool Speed : 24000 rpm - ATC : Servo control Line tool changer with 12 slots - Vacuum pump Quantity : 1 - Vacuum pump Power : 7.5 kW - Vacuum pump Suction flow rate : 250 m3/h - Dust extraction Diameter : 150 mm*1x125mm*3 Speed required: 28 m/s - Air supply : 6-7 kg/cm2 - Power supply : 380V, 3-phase, 50 Hz - Total power : 27.31 kW - Floor space : L×W×H: 11000×2460×2500 mm - Net weight : 4,600 kg
