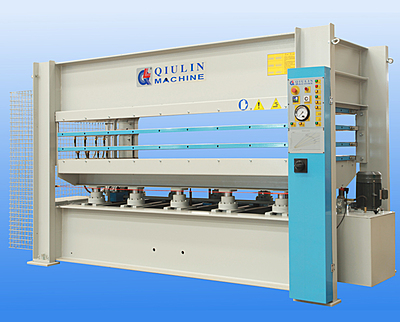

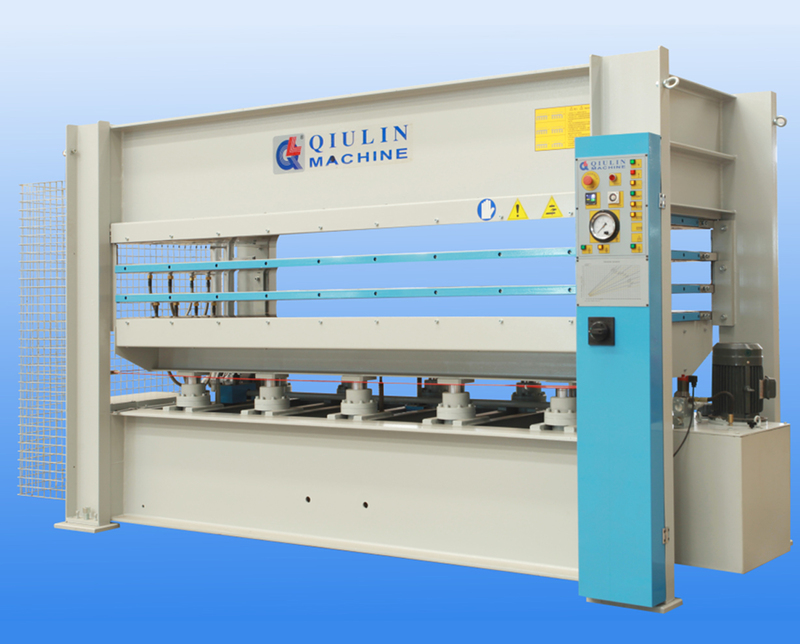

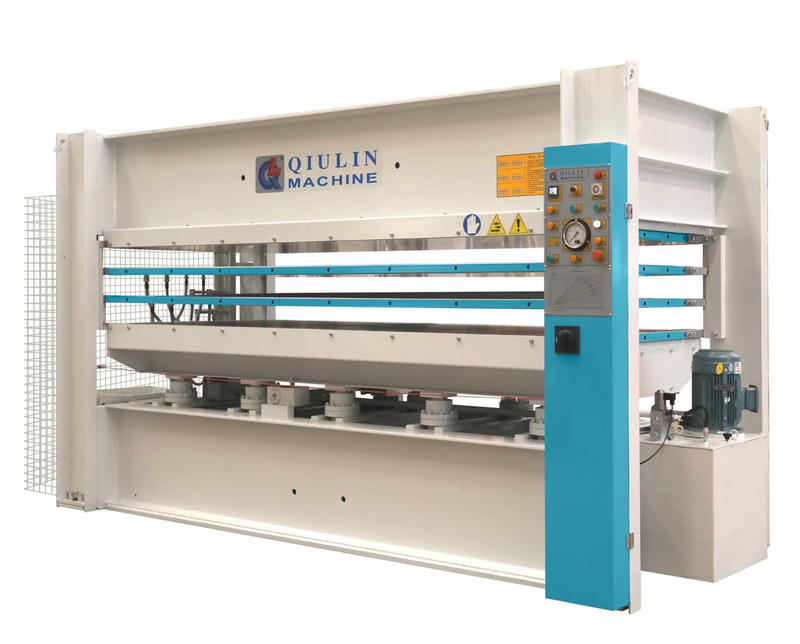

Hot Press Machine BY214X8/10(3)H1RC [ 2500x1300 | 100T | Solid Steel | Daylight 3]
₹2,225,000.00 ₹2,781,250.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAL DATA:
- Total pressure : 1000KN
- Specific pressure : 3.1gf/cm2
- Working layer : 3 layers
- Platen No.& Size : 4-2500x1300x42mm(solid steel drilled hot platen covered with mylar)
- Platen opening : 120mm
- Cylinder No.& Dia : 6-85mm
- Max temperature : 120℃
- Heating way : Electric heating with thermal oil
- Heating medium : thermal oil
- Installation power : (4+0.75+48)KW
- Platen opening way : Automatically
- Loading way : Length side,Manually
- Voltage : 3PE 415V 50Hz
