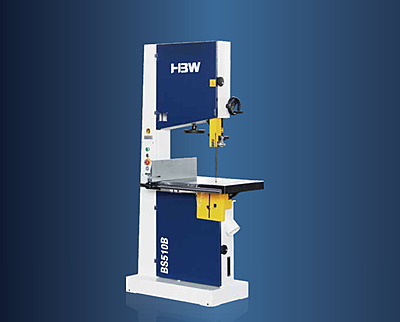

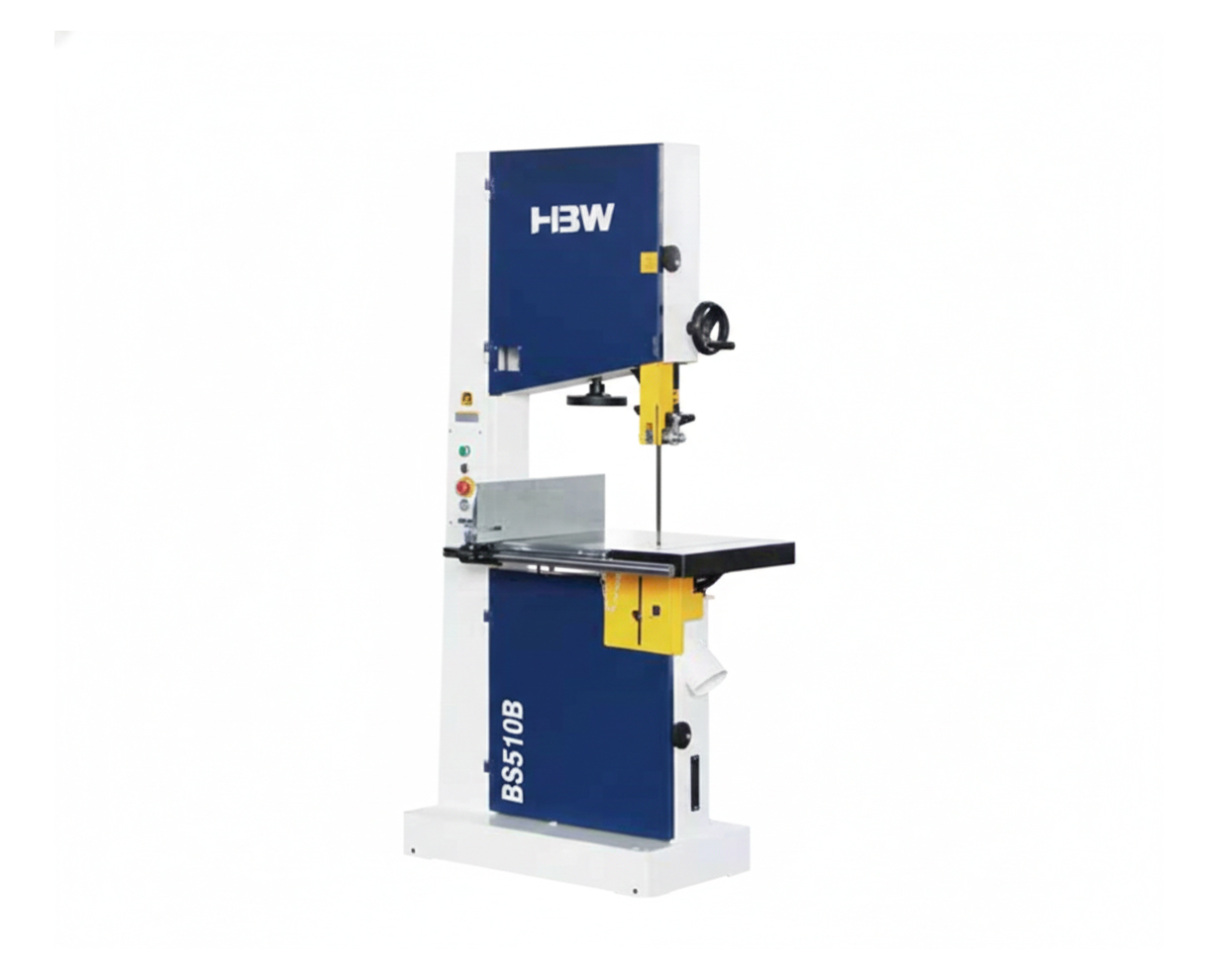

Bandsaw Machine BS510B with mitre gauge
₹200,000.00 ₹250,000.00
Available on Request

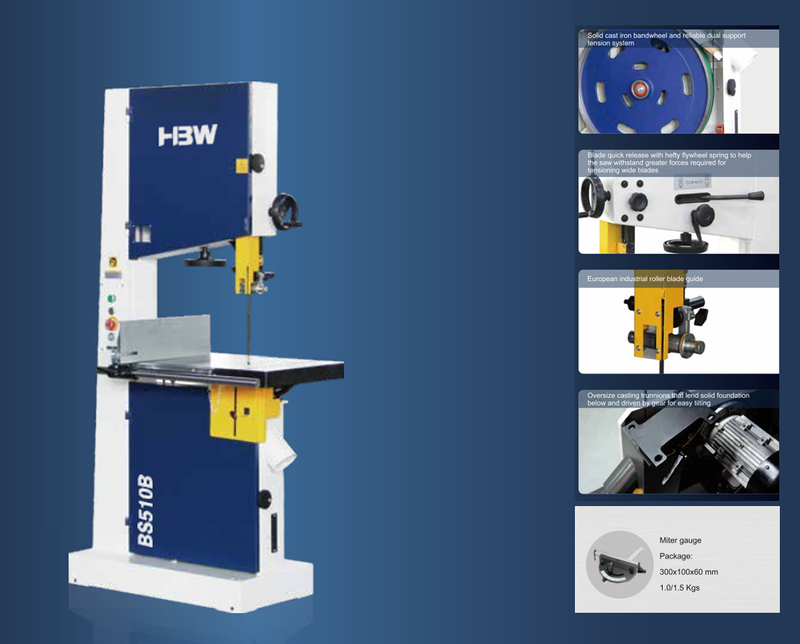

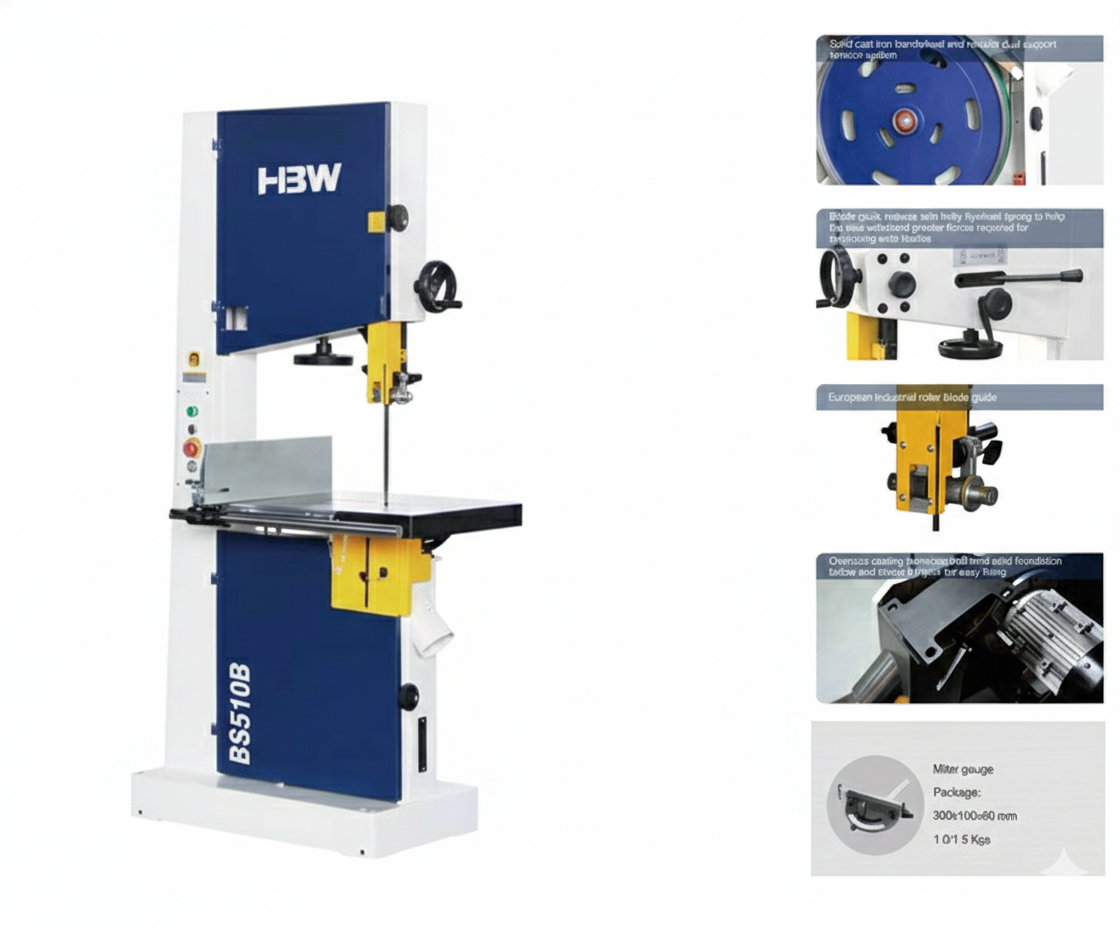

FEATURES:
- Reliable dual support tension system
- Quick blade tension release
- European industrial roller blade guide
- Over sized table trunnion . driven by gear for easy tilting
TECHNICAL DATA:
- Blade Length : 3962 mm
- Blade Width : 6 - 30 mm
- Blade Speed : 1500 m/min
- Max depth cut with bearing : 335 mm
- Max depth of cut EU roller : 305 mm
- Throat Width : 480 mm
- Table Size : 633x485 mm
- Table Tilt : 0 - 45 Deg.
- Band wheel Diameter : 500 mm
- Motor Power input : 2-1/2 HP
- Motor Output : 3 Kw S1
- Extractor port dia. : 2x100 mm
- Net/Gross Weight : 220/245 kg
- Mitre Gauge : 300x100x60mm
