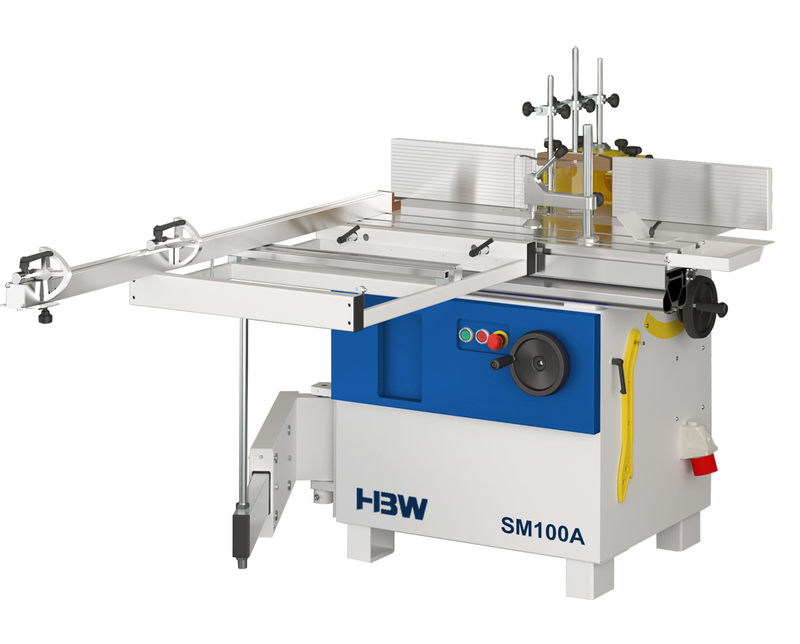

Spindle Moulder/3*400V/50Hz/30mm spindle
₹225,000.00 ₹281,250.00
Available on Request
TECHNICAL DATA
- Spindle Diameter : 30mm
- Spindle Speed : 1400/3500/6000/8000rpm
- Max. Spindle stroke : 140mm
- Spindle length : 130mm
- Spindle tilt in deg. : -5 + 45
- Max. Table opening dia. : 220mm
- Max. Tool dia. Under the table : 200/250mm
- Height of table : 890mm
- Max. height of machine : 1300mm
- Table size : 1000 x 350mm
- Extractor port dia. : 100mm
- Net/gross weight : 235/280kg
- Power : 3*400V/50Hz
*with extension table and cross cutting fence
