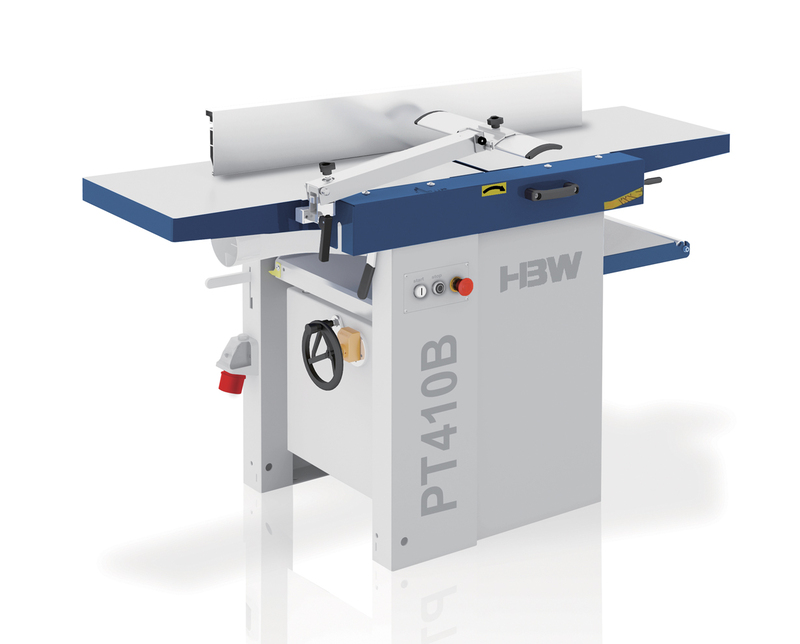

16" Planer & Thicknesser/3*400V/50Hz/4kW
TECHNICAL DATA
- Feed Speed : 7m/min
- Cutter block Speed : 5500rpm
- Cutter block dia. : 70mm
- Max. Thickness Height : 4 - 225mm
- Max. Thickness Width : 410mm
- Min. length of workpiece : 160mm
- Max. depth of cut : 4mm
- Cutterhead : 2 Slot Spiral cutterhead
- Over length of plane table : 1659mm
- Thickness table size : 650 x 407mm
- Extractor port dia. : 120mm
- Net/gross weight : 294/352kg
- Power : 3*400V/50Hz/4kW
with Digital Readout
with 2 Slot Spiral cutterhead
with Extension table
