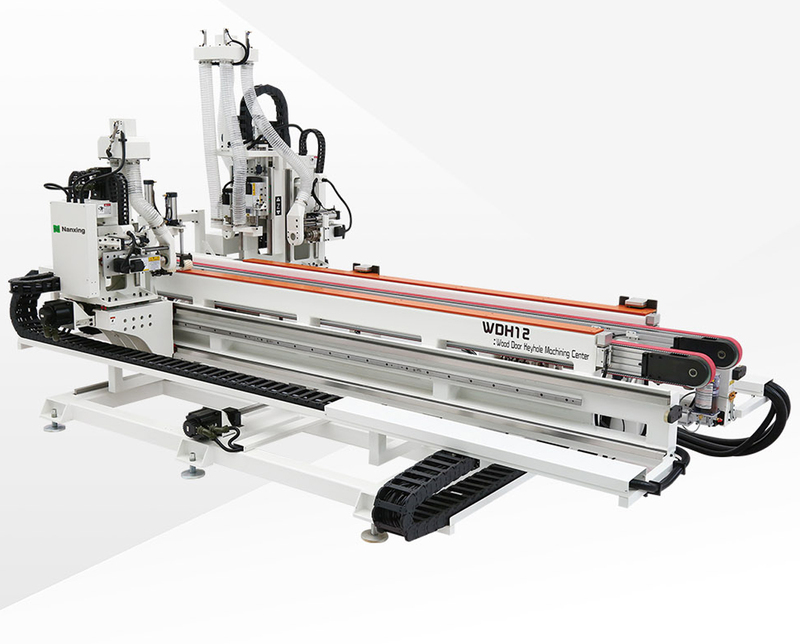

CNC Door Key hole Machining Centre WDH-12

FEATURES:

- 1pc Vacuum PumTECHNICAL SPECIFICATIONS

- Panel length : 500 - 2800mm

- Panel Width : 500 - 1200mm

- Panel thickness : 30 - 80mm

- Maximum travel speed (X/Y/Z) : 60/60/10 m/min

- Drill motor for locks : 3.5kw+1.5kw

- Grooving motor : 6kw+0.37kw

- Drill motor for hinges : 3.5kw+0.37kw

- Total power : 25kw

- Machine size : 5000 X 2600 X 1700mm

- Machine weight : 2500kgp

- Automatic Loading

- Pre-Positioning Vacuum Cup

- Vacuum cup and roller bracket

- Rotatable Labelling

- Automatic Greasing

- Side Positioning Cylinders & Positioning Cups

- 9kW main Spindle + 10 drills drilling block

- Automatic Line Tool Changer 12 Slots

- Unloading Pusher

- Rear Positioning Cylinders and Dust Collector

- Auto Unloading

- Tank Cable Chain

- Tool Setting gauge and locker

- Hand Wheel and Foot Switch

- Computer with Windows Dell Display USB Port & easy for remote assistance

- Optimizing Software

- Workpiece Editor Software

- Online Optimization Software (One Year free of charge)

TECHNICAL SPECIFICATIONS:

- Control system : SYNTEC

- Working range X : X-axis: 2,800 mm

- Working range Y : Z-axis: 50 mm

- Working range Z : Y-axis: 1,220 mm

- Working table : Size: 2,800×1,220 mm Height: 950mm

- Max. traveling speed X : X-axis: 100 m/min

- Max. traveling speed Y : Z-axis: 20 m/min

- Max. traveling speed Z : Y-axis: 100 m/min

- Main spindle Quantity : 1

- Main spindle Power : 9 kW

- Main spindle Tool Holder : ISO30

- Main spindle Tool Speed : 24000 rpm

- ATC : Servo control Line tool changer with 12 slots

- Vacuum pump Quantity : 1

- Vacuum pump Power : 7.5 kW

- Vacuum pump Suction flow rate : 250 m3/h

- Dust extraction Diameter : 150 mm*1x125mm*3 Speed required: 28 m/s

- Air supply : 6-7 kg/cm2

- Power supply : 380V, 3-phase, 50 Hz

- Total power : 27.31 kW

- Floor space : L×W×H: 11000×2460×2500 mm

- Net weight : 4,600 kg
