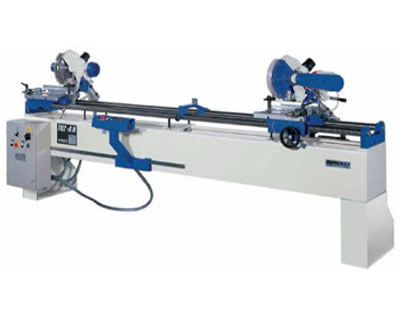

OMGA DOUBLE MITRE SAW MACHINE TR2ANC
Automatic double mitre saw where the cycle is controlled by an electro pneumatic
system, that allows three working cycles, selected
by a switch on the control panel:
- Simultaneous cut of the blades
- Alternated cut of the saw blades to avoid
collision for cutting short pieces
- Cut with one head only
The stroke of the saw units is pneumatic.
The motorized traverse of the mobile head is
controlled by a numerical control
Functions of the numerical control unit:
-Touch Screen 7 (154 x 93mm) back lit
- Virtual alphanumerical Keyboard
- Internal diagnostic
- Constants for angle correction
- Constant for correction of counter-blocks
- Multi language
- Storing capacity: micro SD card 4Gb
- 2 Serial Port (RS232)
- 2 USB Port
- 1 Ethernet Port (RJ45)
- Suitable for mm, inches and fractions of inch
- Programming directly from keyboard, via net or USB Port
- Possibility of import via CSV files
Standard Equipment
- 2 vertical clamps
- 2 horizontal clamps
- Fix head on the left side
- TCT saw blades included
- Locking points at 45? RH and LH side and 90?
- Manual locking of intermediate angles
- Middle support
- Air regulator with filter and oilier
- Safety pressure switch
- Overload not volt protection,
- Motor brakes.
-Two hands push buttons for cycle execution
Technical Data
- max. cutting length at 90?:- 2750 mm
- min. cutting length at 45? : 385 mm
- min. cutting length at 90? : 225 mm
- max. cutting width at 90? : 145 mm
- max. cutting width at 45? : 93 mm
- cutting height : 90 mm
- saw blade diameter : 300 mm
- two motors : 2,2 kW
- Diameter of dust chutes : 2 x 80 mm
- Total dust extraction volume : 800 m3/h at 21 m/sec
- overall dimensions : 3675 x 1450 x 1200 mm
