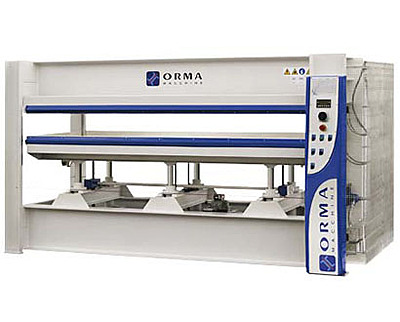

TECHNICAL DATA:<\/strong><\/p>\n - Press platen dimension : 3000x1300 mm<\/p>\n
- Platen Type : Fabricated Steel Platens (Aluminium Covered)<\/p>\n
- Max. total thrust : 90 T<\/p>\n
- Specific pressure over 80% of the platen surface : 2.4 Kg/cm2 (approx.)<\/p>\n
- Pressing pistons No./ Dia. : 6 /70 mm stroke 400 mm<\/p>\n
- Movable platen : LOWER (upstroke design)<\/p>\n
- Opening : 400 mm<\/p>\n
- Loading side : 3000 mm<\/p>\n
- Heating system with electric heater for thermal oil : 18kw<\/p>\n
- Voltage : 400/3/50Hz<\/p>\n
\n
<\/p>\n
\n Regulation:<\/strong> <\/p>\n ORMAMACCHINE spa declares that the machines supplied are not CE marked,<\/p>\n
but are built in compliance with EN ISO 12100 safety of machinery,\n UNI EN 61439- 1<\/p>\n
Electrical panels of machines and CEI EN 60204-1 Electrical\n equipment of<\/p>\n
machines regulations.<\/p>\n
\n
<\/p>\n
\n Exclusions:<\/strong> <\/p>\n - machinery and material unloading c/o the Customer place;<\/p>\n
- support staff for our technician during installation/commissioning;<\/p>\n
- possible digging, masonry and painting by the customer;<\/p>\n
- electrical, pneumatic and hydraulic connections to the Customer\n main supplies;<\/p>\n
- electrical connections to machinery not supplied by us;<\/p>\n
- anything not specified in the offer.<\/p>\n
\n
<\/p><\/div>","has_variant_price":false,"has_variants":false,"is_out_of_stock":false,"label_price":3718750,"selling_price":3150000,"starts_with":3150000,"ends_with":3150000,"on_sale":false,"is_returnable":true,"is_stock_managed":false,"documents":[{"document_id":"2574649000057388810","name":"NPC-digit.jpg","is_featured":false,"attachment_order":0,"alter_text":""},{"document_id":"2574649000057388812","name":"NPC-digit.jpg","is_featured":false,"attachment_order":0,"alter_text":""}],"images":[{"id":"2574649000057388812","url":"/product-images/NPC-digit.jpg/2574649000057388812","title":"","alternate_text":"","order":0,"is_featured":true,"is_placeholder_image":false}],"attributes":[],"seo":{"description":"\n \n TECHNICAL DATA: \n - Press platen dimension : 3000x1300 mm \n - Platen Type : Fabricated Steel Platens (Aluminium Covered) \n - Max. total thrust : 90 T \n - Specific pressure over 80% of the platen surface : 2.4 Kg/cm2 (approx.) \n - Pressing pistons No./ Dia. : 6 /70 mm stroke 400 mm \n - Movable platen : LOWER ","title":"Orma Hot Press NPC Digit 6/95 [3000x1300mm | 90T | 400mm | 1 Daylight]"},"specification_group":[],"variants":[{"variant_id":"2574649000057388803","options":[],"stock_available":1,"double_stock_available":1,"is_out_of_stock":false,"is_returnable":false,"selling_price":3150000,"label_price":3718750,"sku":"NPCDIGIT6/95","isbn":"","mpn":"NPC DIGIT 6/95","upc":"","ean":"9000057388803","price_brackets":[],"images":[{"id":"2574649000057388810","url":"/product-images/NPC-digit.jpg/2574649000057388810","title":"","alternate_text":"","order":0,"is_featured":false,"is_placeholder_image":false},{"id":"2574649000057388812","url":"/product-images/NPC-digit.jpg/2574649000057388812","title":"","alternate_text":"","order":0,"is_featured":false,"is_placeholder_image":false}],"custom_fields":[],"is_available_for_purchase":false,"is_deliverable":true}],"tags":[],"review_id":"48953000074781029","is_social_share_enabled":false,"is_product_custom_fields_enabled":true,"is_product_review_enabled":true,"is_product_price_brackets_available":false,"is_input_custom_field_available":false,"is_available_for_purchase":false,"is_deliverable":true},{"product_id":"2574649000006321450","name":"Orma Hot Hydraulic Press [2500x1300mm | 120T | Daylight 2]","type":0,"handle":"orma-hot-hydraulic-press-2500x1300mm-120t-daylight-2-","url":"/products/orma-hot-hydraulic-press-2500x1300mm-120t-daylight-2-/2574649000006321450","quick_look_url":"/products/orma-hot-hydraulic-press-2500x1300mm-120t-daylight-2-/2574649000006321450?quick_look=true","category_id":"2574649000000477009","brand":"Orma","status":true,"description":"","short_description":"TECHNICAL DATA: <\/span>\n - Press platen dimension : 2500x1300 mm <\/div>\n
- Max. total thrust : 120 T <\/div>\n
- Specific pressure over 80% of the platen surface : 4.6\n Kg/cm2 (approx) <\/div>\n
- Pressing pistons : N 6 dia 85 mm stroke 450 mm. <\/div>\n
- Movable platen : LOWER (upstroke design) <\/div>\n
- Opening : 450 mm <\/div>\n
- Loading side : 2500 mm <\/div>\n
- Daylights 2 (225 mm each) : <\/div>\n
<\/div>\n
STRUCTURE<\/span><\/div>\n Press structure in steel\n beams welded together on a precision jigs; locating surfaces\n are CNC tool machined <\/div>
The lower mobile platen\n and the upper fix platen structure are in beams welded on a\n precision jigs.<\/div>
Double rack and pinion system (both\n length and crosswise) to grant a perfect platens?\n parallelism when the mobile one is moving up/downward.<\/div>\n
Movable platen locking system in order to work safely\n during the maintenance operations<\/div>
\n
HYDRAULIC\n SYSTEM<\/span>
<\/div> Hydraulic power unit (HAWE)\n composed by a double stage pump and a motor which are\n submersed in the hydraulic oil for a less noisiness and a\n better lubrication of the rotating parts.<\/div>\n
Closing stage (high delivery at low pressure)<\/div>\n
Thrusting stage (low delivery at high pressure)<\/div>\n
Both pumps are protected by a pressure relief valve.<\/div>\n
This system allows the use of lower consumption motors\n increasing the efficiency of the plant. <\/div>\n
Unit fitted with control and safety valves which are located in\n a group over the hydraulic oil tank lid<\/div>
The circuit\n comes filled with the necessary hydraulic oil to run the\n press.<\/div>
Rams are in steel suitable for hydraulic\n applications and are designed to work at the max pressure\n adjustable on the press..<\/div>
ELECTRIC SYSTEM<\/span>
<\/div>\n Main control board (Siemens components) including:<\/div>\n
- Dual timed press closing push buttons; press opening push\n button.
<\/div>
- Main on/off switch.<\/div>
-\n Tension light.<\/div>
- Emergency push button<\/div>\n
Operator control, touch screen board, with 7? digital display,\n SIEMENS KTP700 BASIC COLOR equipped with <\/div>
\n
<\/div>
ETHERNET NET\n for remote assistance connection<\/span> (it must be\n provided an access to your net + Service pack) to set and\n control the following functions:<\/div> 1) Setting and display\n of the working pressure<\/div>
2) Setting and display of the\n working temperature (presses with electric heater)<\/div>\n
3) Setting and display of the pressing time for automatic\n opening <\/div>
4) Setting of the heating plant automatic\n switching on (presses with electric heater). Possibility of all\n week days setting<\/div>
5) possibility to automatically set\n the partial use the power consumption of the boiler when it\n reaches the set temperature (for presses with electric boiler)\n only for machines with more than 20 kW boiler<\/div>
6)\n automatic adjustment of the requested pressure in bar (with\n automatic recovery of pressure decrease) obtained by setting the\n working pieces area and the desired specific pressure<\/div>\n
7) Automatic switching OFF of one set of pistons according to\n the dimension of the board to be processed (optional\n version)<\/div>
8) Possibility to store up to 100 working\n recipes (temperature-pressure-time-panel dimension)<\/div>\n
9) Self-diagnostic showing faults of the press <\/div>\n
Electric cables placed\n in a suitable protecting raceway.<\/span>
<\/div>\n Emergency cable all around the press <\/div>
\n
FABRICATED STEEL\n PLATENS
<\/span><\/div> Fabricated steel platens\n suitable to use water or thermal oil as heating medium.<\/div>\n
Max. pressure of the heating\n medium 0,5 bar.<\/span>
<\/div> The platen\n composition starting form the supporting frame of the platen\n itself is the following:<\/div>
- thermal insulation\n sheet;<\/div>
- High resistance glossy planed iron sheet<\/div>\n
- heating steel coil (rectangular shape), tested at 2 bar\n pressure.<\/div>
- Set of iron pipe fitted between the coils\n (same shape) in order to grant the platen strength and\n uniformity of the platen;<\/div>
- High resistance glossy\n planed iron sheet<\/div>
<\/div>
The sandwich\n is assembled by rods that are used for the platen fixing to the\n press structure, this system allows both, thermal\n expansion and the possibility of maintenance operation on the\n coils<\/div>
HEATING SYSTEM WITH\n ELECTRIC HEATER FOR THERMAL OIL (MAX. LIQUID TEMPERATURE 120\n ?C)<\/span>
<\/div> Heating system with electric\n heater for thermal oil ( 18 kW).<\/div>
Max. liquid\n temperature 130 ?C<\/div>
The plant is equipped with\n circulating pump, open expansion tank, pipes from the boiler to\n the press, valves for circuit air exhausting, electric control\n board, safety and check instruments.<\/div>
The boiler is\n supplied complete of the necessary oil for the first plant\n filling.<\/div>
Pipe insulation excluded.<\/div><\/div>","has_variant_price":false,"has_variants":false,"is_out_of_stock":true,"label_price":3968750,"selling_price":3575000,"starts_with":3575000,"ends_with":3575000,"on_sale":false,"is_returnable":true,"is_stock_managed":false,"documents":[{"document_id":"2574649000006321457","name":"NPC-120T-3513.jpg","is_featured":false,"attachment_order":0,"alter_text":""}],"images":[{"id":"2574649000006321457","url":"/product-images/NPC-120T-3513.jpg/2574649000006321457","title":"","alternate_text":"","order":0,"is_featured":true,"is_placeholder_image":false}],"attributes":[],"seo":{"description":"TECHNICAL DATA: \n - Press platen dimension : 2500x1300 mm \n - Max. total thrust : 120 T \n - Specific pressure over 80% of the platen surface : 4.6\n Kg/cm2 (approx) \n - Pressing pistons : N 6 dia 85 mm stroke 450 mm. \n - Movable platen : LOWER (upstroke design) ","title":"Orma Hot Hydraulic Press [2500x1300mm | 120T | Daylight 2]"},"specification_group":[],"variants":[{"variant_id":"2574649000006321450","options":[],"stock_available":0,"double_stock_available":0,"is_out_of_stock":true,"is_returnable":false,"selling_price":3575000,"label_price":3968750,"sku":"NPC-DIGIT-6/100-(25x13+1IP)","isbn":"","mpn":"NPC-DIGIT-6/100-(25x13+1IP)","upc":"9000006321450","ean":"9000006321450","price_brackets":[],"images":[{"id":"2574649000006321457","url":"/product-images/NPC-120T-3513.jpg/2574649000006321457","title":"","alternate_text":"","order":0,"is_featured":false,"is_placeholder_image":false}],"custom_fields":[],"is_available_for_purchase":false,"is_deliverable":true}],"tags":[],"review_id":"48953000000110071","is_social_share_enabled":false,"is_product_custom_fields_enabled":true,"is_product_review_enabled":true,"is_product_price_brackets_available":false,"is_input_custom_field_available":false,"is_available_for_purchase":false,"is_deliverable":true},{"product_id":"2574649000006764089","name":"Orma Hot Hydraulic Press [3000x1300mm | 120T | Daylight 2]","type":0,"handle":"orma-hot-hydraulic-press-3000x1300mm-120t-daylight-2","url":"/products/orma-hot-hydraulic-press-3000x1300mm-120t-daylight-2/2574649000006764089","quick_look_url":"/products/orma-hot-hydraulic-press-3000x1300mm-120t-daylight-2/2574649000006764089?quick_look=true","category_id":"2574649000000477009","brand":"Orma","status":true,"description":"","short_description":"
TECHNICAL DATA :<\/span>\n - Total Thrust : 120 Ton <\/div>\n
- Type of Platen : Fabricated Steel Platen <\/div>\n
- Platen Sizes : 3000mm X 1300mm <\/div>\n
- Cylinder Dia : 85mm <\/div>\n
- Cylinders : 6 No <\/div>\n
- Stroke : 450 mm <\/div>\n
- Movable platen : LOWER (upstroke design) <\/div>\n
- Daylights : 2 (225 mm each) <\/div>\n
- Loading side : 3000 mm <\/div>\n
- Timer Opening <\/div>\n
- Control Board with Touch Screen <\/div>\n
- Safety Cable <\/div>\n
- 400V/3/50Hz
<\/div>\n
<\/div>
STRUCTURE<\/span><\/div> Press\n structure in steel beams welded together on a precision\n jigs; locating surfaces are CNC tool machined <\/div>\n
The lower mobile platen and the upper fix platen structure\n are in beams welded on a precision jigs.<\/div>
Double\n rack and pinion system (both length and crosswise) to\n grant a perfect platens? parallelism when the mobile one is\n moving up/downward.<\/div>
Movable platen locking\n system in order to work safely during the maintenance\n operations<\/div>
<\/div>
\n
HYDRAULIC SYSTEM<\/span><\/div>\n Hydraulic power unit (HAWE) composed by a double stage pump\n and a motor which are submersed in the hydraulic oil for a less\n noisiness and a better lubrication of the rotating\n parts.<\/div>
Closing stage (high delivery at low\n pressure)<\/div>
Thrusting stage (low delivery at high\n pressure)<\/div>
Both pumps are protected by a pressure\n relief valve.<\/div>
This system allows the use of\n lower consumption motors increasing the efficiency of\n the plant. <\/div>
Unit fitted with control and\n safety valves which are located in a group over the\n hydraulic oil tank lid<\/div>
The circuit comes filled\n with the necessary hydraulic oil to run the press.<\/div>\n
Rams are in steel suitable for hydraulic applications and\n are designed to work at the max pressure adjustable on\n the press..<\/div>
ELECTRIC\n SYSTEM<\/span>
